- drone type : Commercial Drones
- function : Headless mode, Altitude Hold Mode, With Camera, One Key Takeoff / Landing, Foldable
- image transmission distance : 15km
- maximum flight time : 38min
- Brand : Autel
- control type : Remote Control
- gyro : 3-Axis
- material : Plastic
- Motor : Brushless Motor
- operator skill level : Beginner
- private mold : Yes
- Still Image Resolution : 20 Megapixels

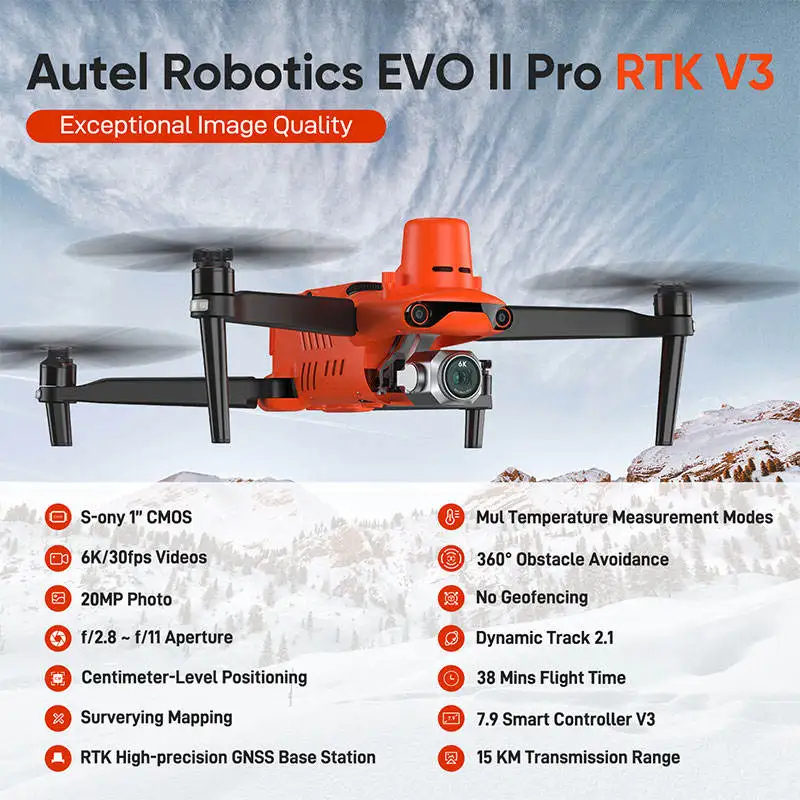

- Product name : AUTEL EVO II Pro 6K RTK V3
- Camera Performance parameters : 1-inch CMOS sensor; 20 megapixels; F2.8~F11 adjustable aperture
- Obstacle avoidance sensing system : omnidirectional binocular obstacle avoidance sensing system
- Mapping system : 15km mapping distance; 2.4G/5.8G/900MHz
- Performance parameters : 36 min; 20m/s max speed; 7000 meters max flight altitude
- Maximum flight altitude : 800 meters Altitude limit in the App
- Working temperature : -10~40℃
- GNSS : GPS/Galileo/BeiDou/GLONASS
- Zoom : 1 – 16x digital zoom maximum 3x lossless zoom
- Video format : MP4 / MOV MPEG-4 AVC/H.264, HEVC/H.265
Product Descriptions
Specification
|
Aircraft
|
|
|
Weight With propellers, battery and RTK module
|
1237g±0.5g（EVO II Pro RTK V3
|
|
Max Takeoff Weight
|
4.41 lbs+ 1999 g
|
|
SizeL*W*H
|
Folded: 230*130*143mm; 9.1*5.1*5.6 inches
|
|
Unfolded: 457*558*143mm; 18*22*5.6 inches
|
|
|
Wheelbase
|
397 mm
|
|
Maximum Takeoff Altitude
|
7000 m
|
|
Max ascent speed
|
8 m/s Ludicrous
|
|
Max descent speed
|
4 m/s Ludicrous
|
|
Max horizontal flight speed
|
20m/s Ludicrous
|
|
Max flight distance no wind
|
21 km
|
|
Max angular velocity
|
120°/s
|
|
Max tilt angle
|
33° Ludicrous
|
|
Max flight time
|
36 min
|
|
Max hovering time no wind
|
32 min
|
|
Operating temperature range
|
14°F to 104°F -10℃ ~ 40℃
|
|
Maximum resistance to wind
|
27mph, 12 m/s Take-off and landing
|
|
Operating frequency
|
902-928MHz FCC Only
|
|
2.400-2.4835GHz
|
|
|
5.725-5.850GHz
|
|
|
Transmission powerE.I.R.P
|
900M
|
|
FCC/ ISED：≤31dBm
|
|
|
2.4G
|
|
|
FCC/ ISED：≤32dBm
|
|
|
SRRC/CE/MIC/RCM：≤20dBm
|
|
|
5.8G
|
|
|
FCC/ISED/SRRC/MIC：≤33dBm
|
|
|
CE/ RCM：≤14dBm
|
|
|
Hovering accuracy
|
When RTK is enabled and working normally:
|
|
Vertical: ±0.1 m; Horizontal: ±0.1 m
|
|
|
Vertical: ±0.1 m when the visual positioning is working normally;
|
|
|
±0.5 m when GNSS works normally
|
|
|
Horizontal: ±0.3 m when the visual positioning is working normally;
|
|
|
±1.5 m when GNSS works normally
|
|
|
Image position compensation
|
The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: -2.63,
|
|
0.31, 83.5 mm, and the photo EXIF coordinates have been compensated. The positive XYZ axis of the body axis system points to the
|
|
|
front, right, and bottom of the aircraft respectively.
|
|
|
Internal storage
|
8GB
|
|
SD storage
|
max. support 256GB UHS-3 or Class 10
|
|
GNSS
|
|
|
Single frequency high sensitivity GNSS
|
GPS+BeiDou+Galileo（Asia）
|
|
GPS+GLONASS+Galileo（Other areas）
|
|
|
Multi-frequency multi-system high-precision RTK GNSS
|
Frequency points used：
|
|
GPS：L1/L2；
|
|
|
GLONASS：L1/L2；
|
|
|
BeiDou：B1/B2；
|
|
|
Galileo：E1/E5
|
|
|
First positioning time:<50 s
|
|
|
Positioning accuracy:
|
|
|
vertical 1.5 cm + 1 ppm RMS;
|
|
|
Horizontal 1 cm + 1 ppm RMS
|
|
|
1 ppm means that the error increases by 1 mm for every 1 km the aircraft moves
|
|
|
Gimbal
|
|
|
Gimbal
|
3-axis stabilization
|
|
Mechanical range
|
Tilt: -135° to +45°;
|
|
Pan: -100° to +100°
|
|
|
Controllable rotation range
|
Tilt: -90° to +30°;
|
|
Pan: -90° to +90°
|
|
|
Max control speed Tilt
|
300°/s
|
|
Angular Vibration Range
|
±0.005°
|
|
Remote controller and image transmission
|
|
|
Operating frequency
|
902-928MHz FCC Only
|
|
2.400-2.4835GHz
|
|
|
5.725-5.850GHz
|
|
|
Transmission powerE.I.R.P
|
FCC：≤33dBm
|
|
CE：≤20dBm@2.4G，≤14dBm@5.8G
|
|
|
SRRC：≤20dBm@2.4G，≤33dBm@5.8G/5.7G
|
|
|
Max Transmission Distance unobstructed, free of interference
|
FCC：9.3 miles 15 km
|
|
CE：5 miles 8km
|
|
|
Display screen
|
2048×1536 60fps
|
|
Battery
|
5800mAh
|
|
Operating time
|
~3 hours Max. Brightness
|
|
~4.5 hours 50% Brightness
|
|
|
Charging time
|
120 minutes
|
|
Internal Storage
|
ROM 128GB
|
|
Sensing system
|
|
|
Sensing system type
|
Omnidirectional sensing system
|
|
Forward
|
Accurate measurement range: 0.5-18 m
|
|
Effective sensing speed:<12m/s
|
|
|
Viewing angle: Horizontal: 60°, Vertical: 80°
|
|
|
Backward
|
Accurate measurement range: 0.5-16 m
|
|
Effective sensing speed:<12m/s
|
|
|
Viewing angle: Horizontal: 60°, Vertical: 80°
|
|
|
Upward
|
Accurate measurement range: 0.5-10 m
|
|
Effective sensing speed:<5m/s
|
|
|
Viewing angle: Horizontal: 65°, Vertical: 50°
|
|
|
Downward
|
Accurate measurement range: 0.5-10 m
|
|
Effective sensing speed:<5m/s
|
|
|
Viewing angle: horizontal: 100°, vertical: 80°
|
|
|
Left and right
|
Accurate measurement range: 0.5-10 m
|
|
Effective sensing speed:<5m/s
|
|
|
Viewing angle: horizontal: 65°, vertical: 50°
|
|
|
Operating Environment
|
Forward, Backward and Sides:
|
|
Surface with clear pattern and adequate lighting lux > 15
|
|
|
Upward:
|
|
|
Detects diffuse reflective surfaces >20%
|
|
|
walls, trees, people, etc.
|
|
|
Downward:
|
|
|
Surface with clear pattern and adequate lighting lux > 15
|
|
|
Detects diffuse reflective surfaces >20%
|
|
|
walls, trees, people, etc.
|
|
|
EVO II Pro RTK V3 visual camera
|
|
|
Sensor
|
1 inch CMOS; 20M pixels
|
|
Lens
|
FOV: 82°
|
|
35 mm format equivalent focal length: 29 mm
|
|
|
Aperture: f/2.8 – f/11
|
|
|
Focus range: 0.5 m to infinity
|
|
|
ISO range
|
Video: 100-44000
|
|
Photo: 100-6400
|
|
|
Shutter speed
|
Photo mode: 1/8000 ~ 8s
|
|
Other: 1/8000 ~ 1/frame rates
|
|
|
Zoom
|
1-16x up to 3x lossless zoom
|
|
Photo mode
|
Single shot/Burst shooting/AEB/Time Lapse/HDR
|
|
Maximum photo size
|
5472*3648 3:2
|
|
5472*3076 16:9
|
|
|
3840*2160 16:9
|
|
|
Image Format
|
JPG default / 12bits DNG / JPG+12bits DNG
|
|
Video resolution
|
5472x3076P30/P25/P24
|
|
3840x2160P60/P50/P48/P30/P25/P24
|
|
|
2720x1528P60/P50/P48/P30/P25/P24
|
|
|
1920x1080P60/P50/P48/P30/P25/P24
|
|
|
Video format
|
MP4 / MOV MPEG-4 AVC/H.264, HEVC/H.265
|
|
Max bitrate
|
80Mbps
|
|
Supported file system
|
FAT32/exFAT
|
|
Battery
|
|
|
Capacity
|
7100 mAh
|
|
Voltage
|
11.55 V
|
|
Battery type
|
LiPo 3S
|
|
Energy
|
82 Wh
|
|
Weight
|
365 g
|
|
Charging temperature range
|
5℃ to 45℃
|
|
Storage temperature and humidity
|
-10~30℃，65±20%RH
|
|
Recommended storage temperature
|
22-28℃
|
|
Max charging power
|
93W
|
|
Charging time
|
90 minutes
|
|
Charger
|
|
|
Input
|
100-240 V, 50/60 Hz, 1.5A
|
|
Output
|
13.2 V ⎓ 5 A
|
|
5V⎓3A 9V⎓2A 12V⎓1.5A
|
|
|
Voltage
|
13.2±0.1V
|
|
Rated power
|
66W
|
|
Multi-Charger
|
|
|
Voltage
|
13.2 V
|
|
Charging temperature range
|
5℃ to 45℃
|
