SPECIFICATIONS

After-sales Service Provided: life time after sale service

Application: Vehicles & Remote Control Toys

Certification: FCC,CE,ISO9001

Feature: HD Camera

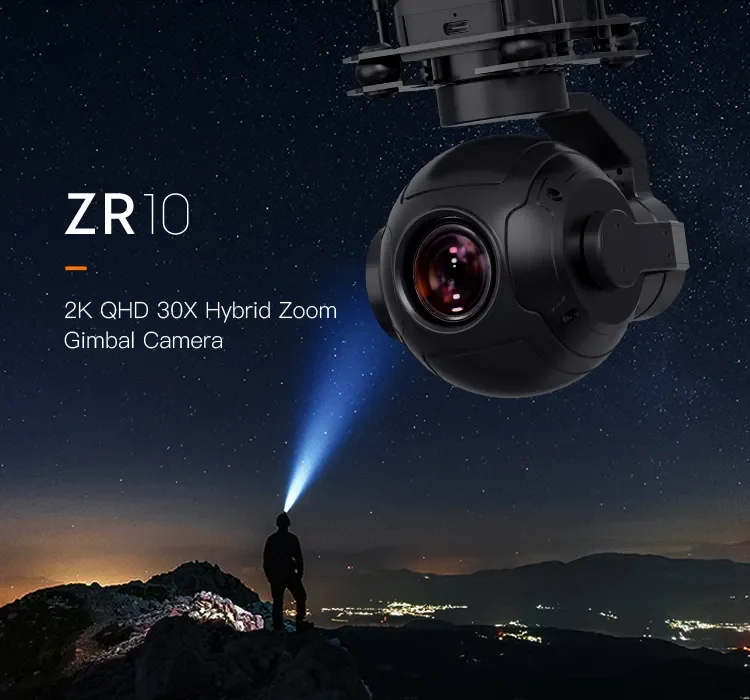

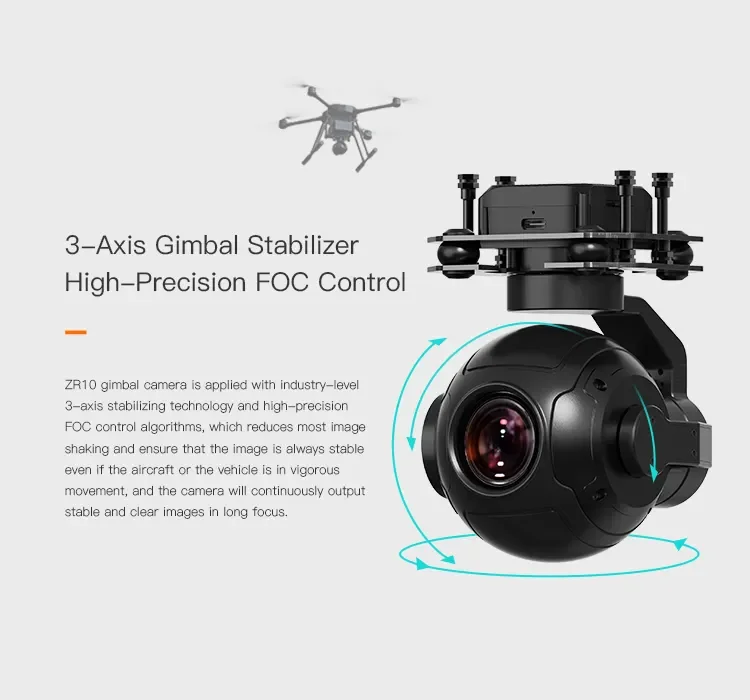

Product name: SIYI ZR10 Camera

Size: 121*101*78 mm

Type: high dynamic range camera

Waterproof Level: IP53

Weight: 381g

Working Voltage: 11 ~ 25.2 V

brand name: SIYI

place of origin: Hubei, China

Product Description

Specification

Model	SIYI ZR10 Gimbal Camera

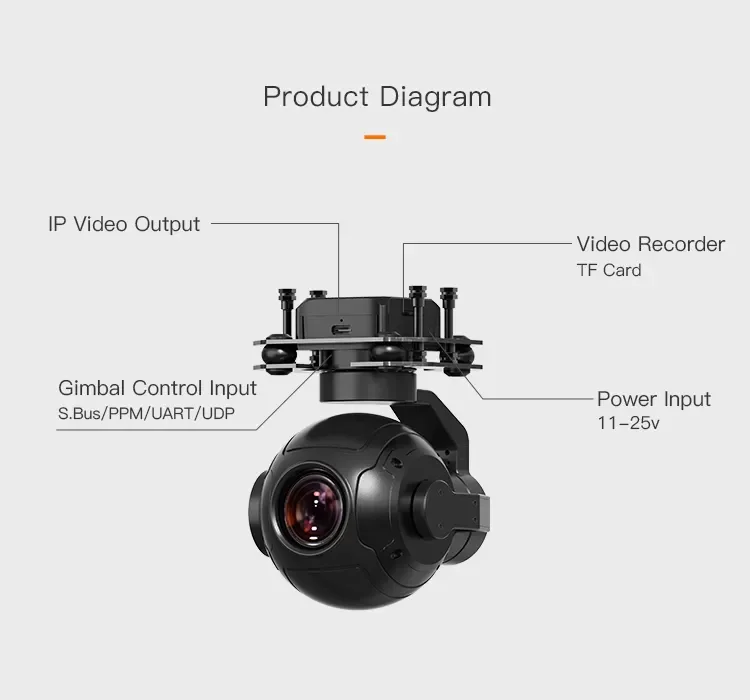

Video Output Port	Ethernet
Control Signal Input Port	S.Bus / PPM / UART / UDP
Power Consumption	5 W
Dimension	121*101*78 mm
Weight	381 g
Waterproof Level	IP53
Angular Vibration Range	±0.01°
Working Voltage	Working Voltage
Working Temperature	-10 ~ 50 ℃

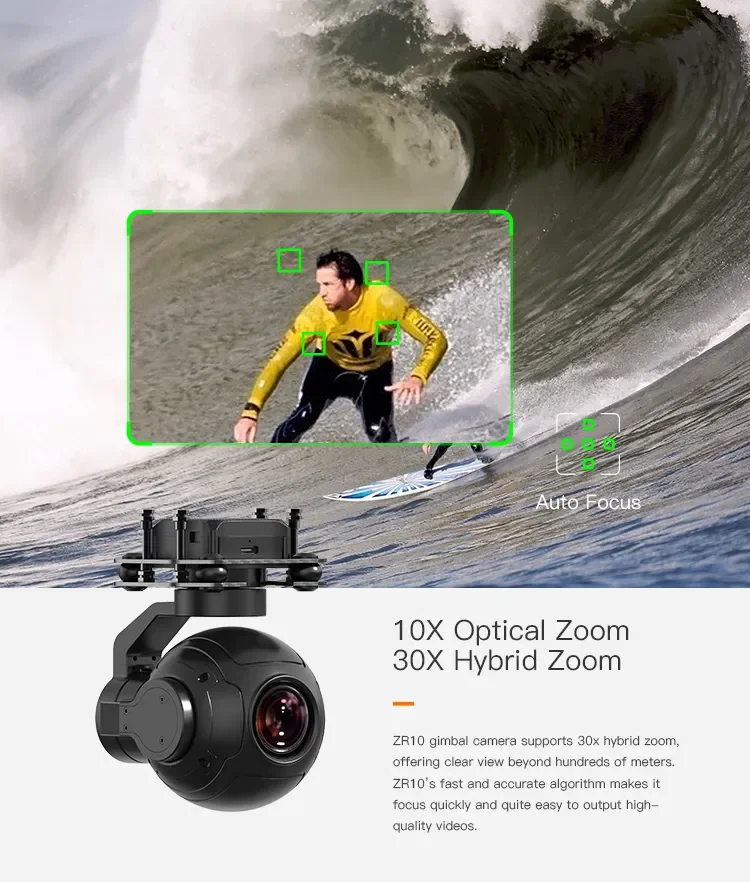

Lens	10X Optical Zoom, 3X Digital Zoom
Focal Length	5.15±5% ~ 47.38±5% mm
Aperture	F1.8 ~ F2.5
Focus	0.2 m to ∞
FOV	Diagonal 79.5°, Horizontal 71.5°
CMOS	1/2.7”, 4 MP
TF Recording Resolution	2560*1440 @ 30 fps
Video Storage Bitrate	12 Mbps
File Storage Format	FAT32
Still Photography Mode	Single
Image Format	JPEG
Video Format	MP (Originally recorded in H.265 file, converted to MP4 file after reboot)
Metering Mode	Evaluative metering
White Balance	Auto
Supported MicroSD Cards	MicroSD Class10 (Max 32GB, will support 128GB by firmware update)
