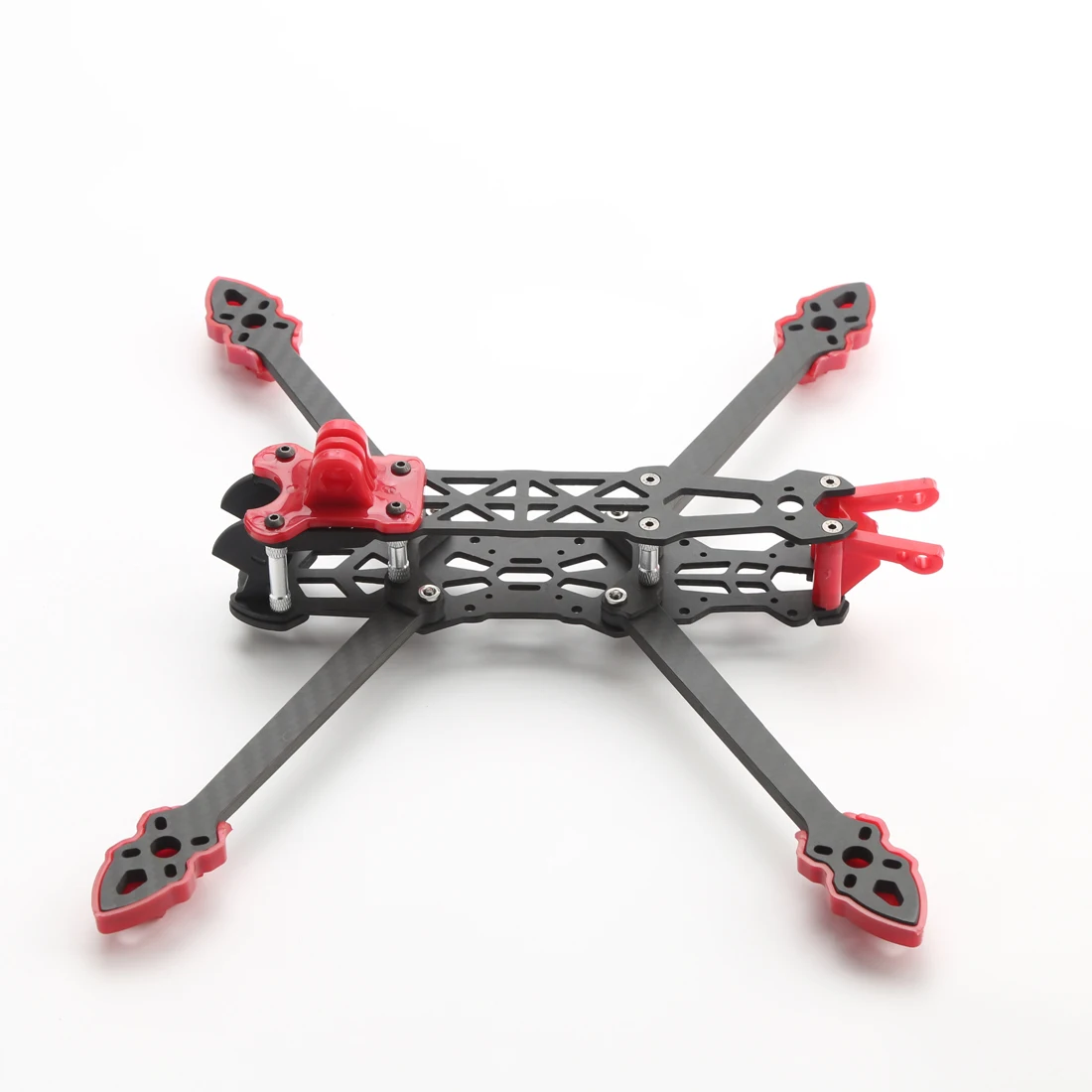

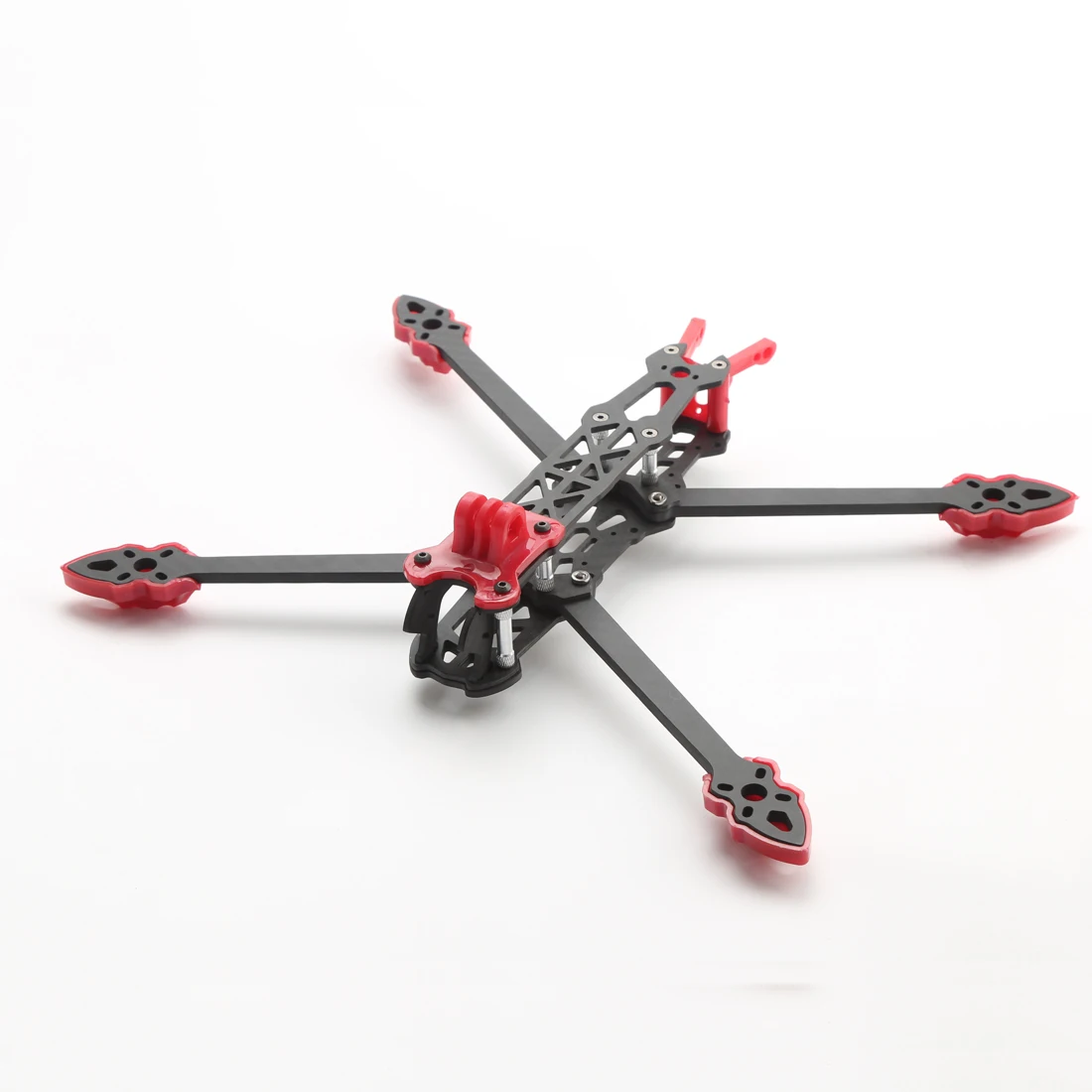

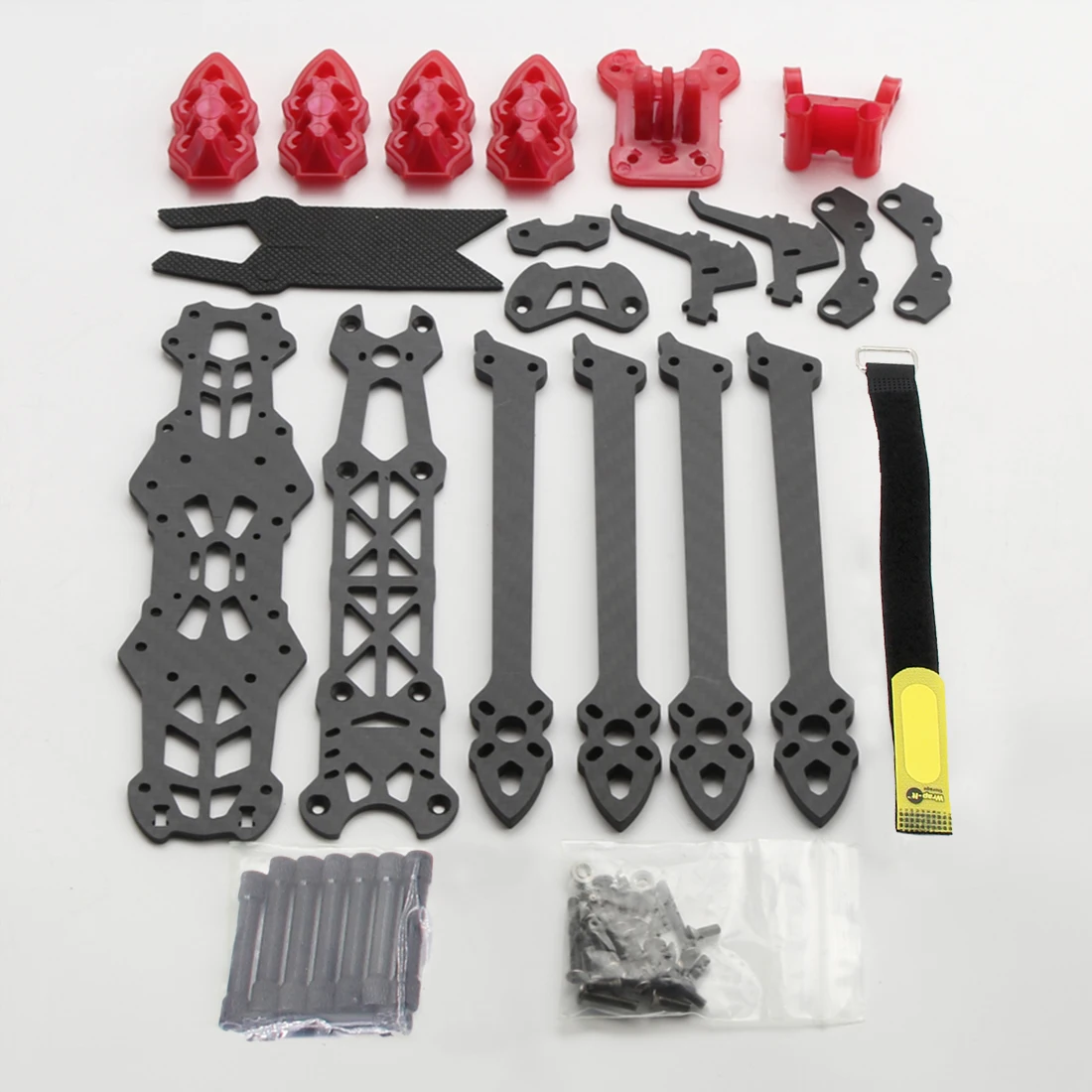

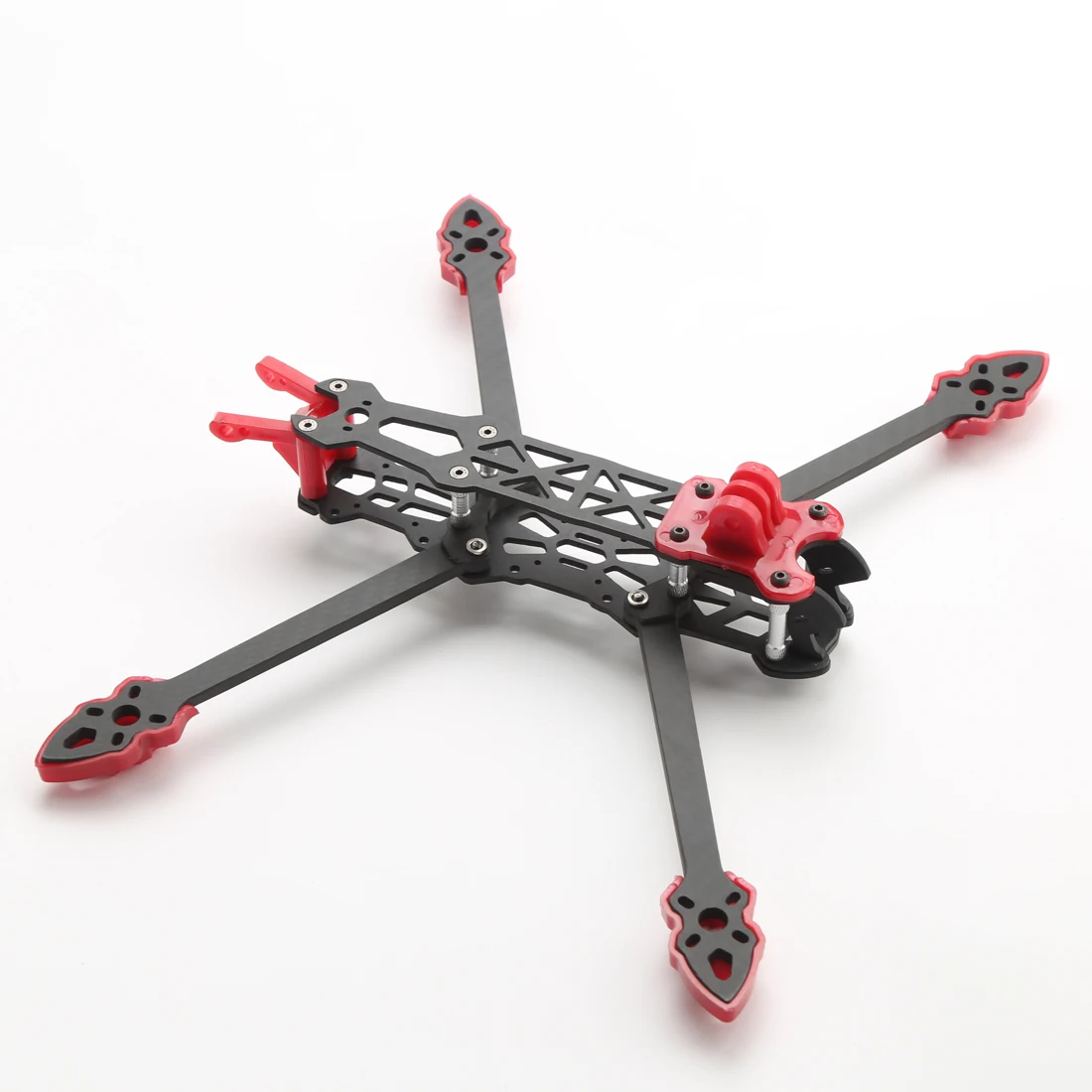

Frame: Mark4-7inch 295mm
Motor to motor: 295MM
Size: 193*223MM
Arms plate: 5MM
Top plate: 2.5MM
Bottom plate: 2.5MM
Side plate: 2.5MM
Camera mount size: 19*19mm
Battery strap length:35cm

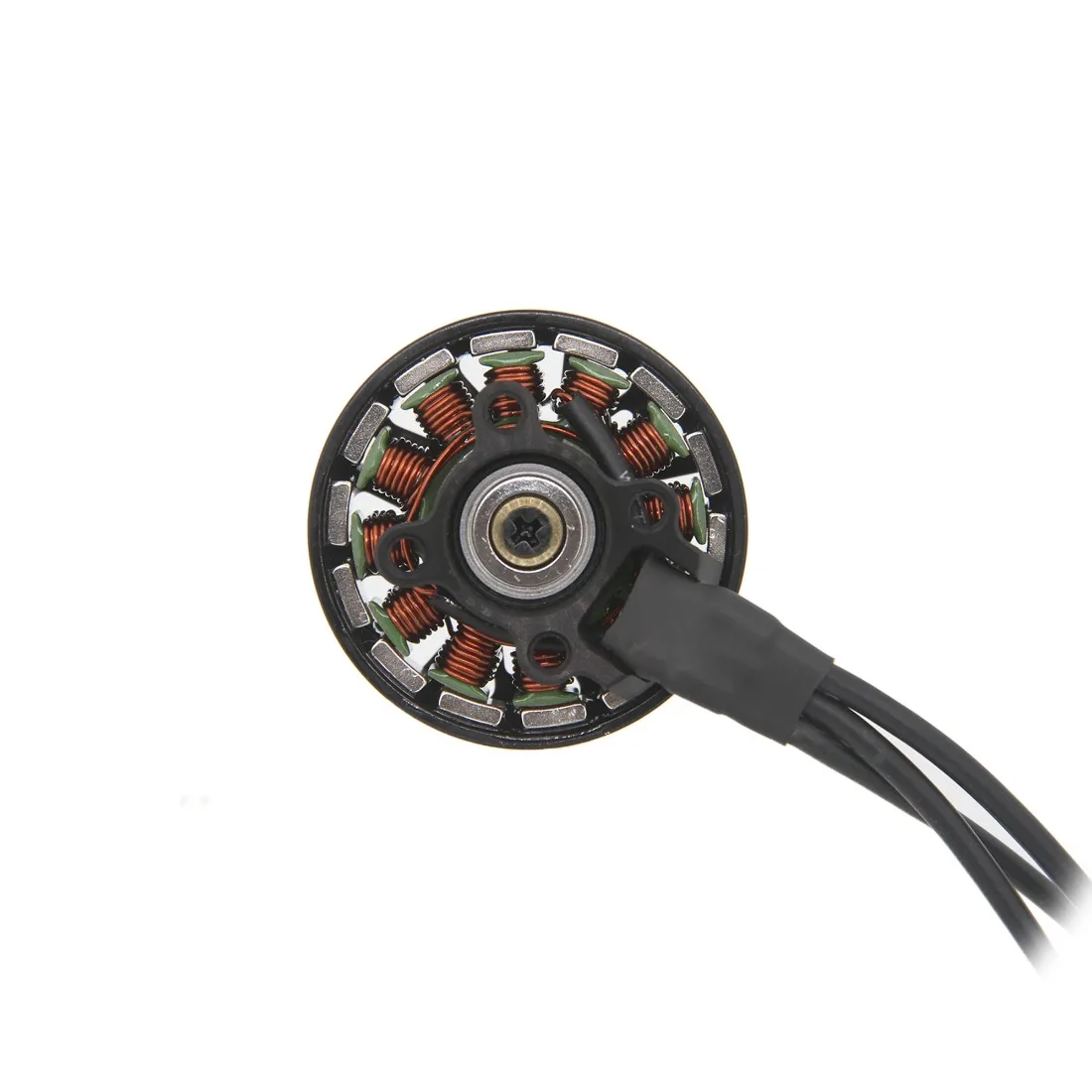

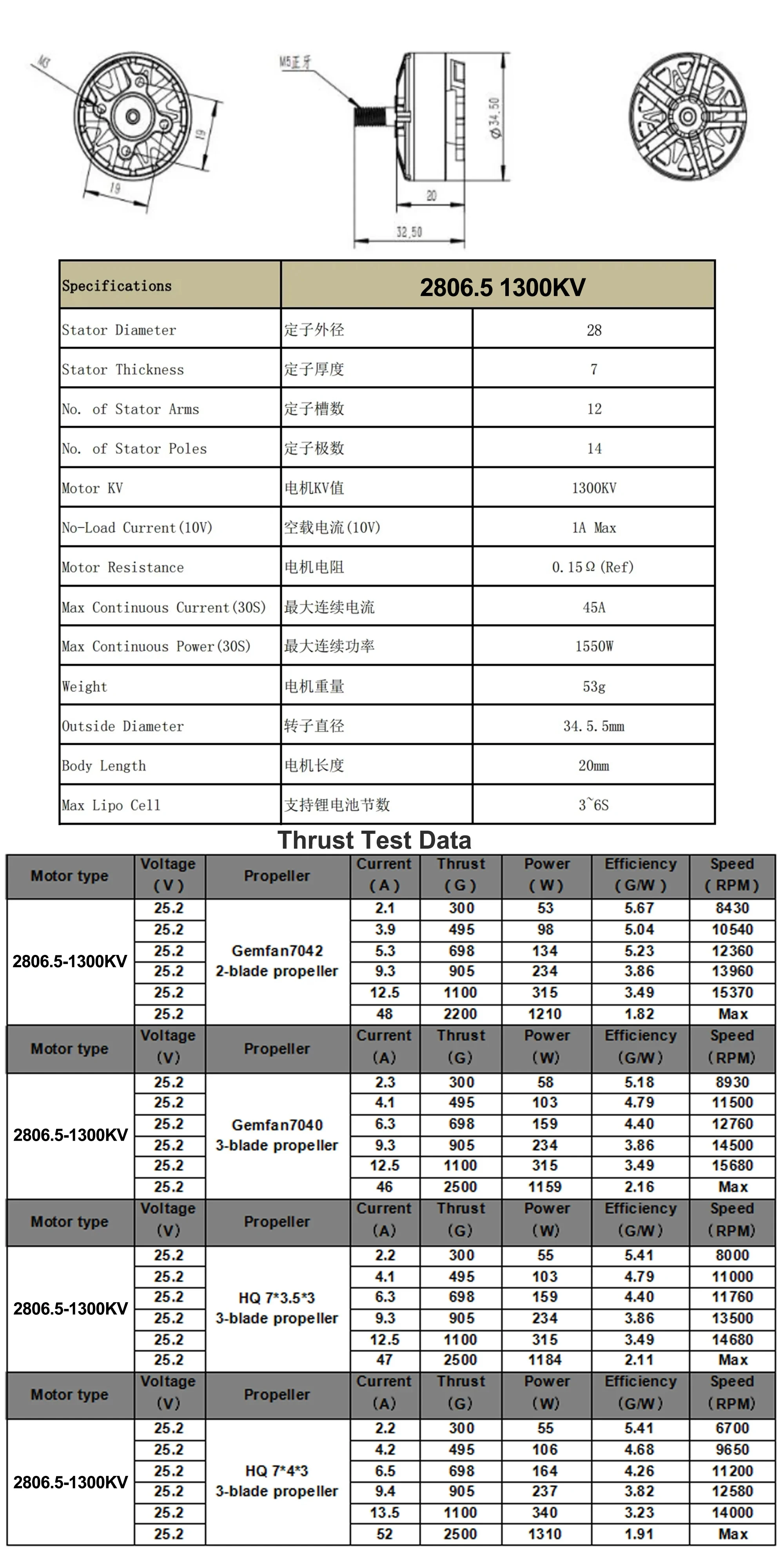

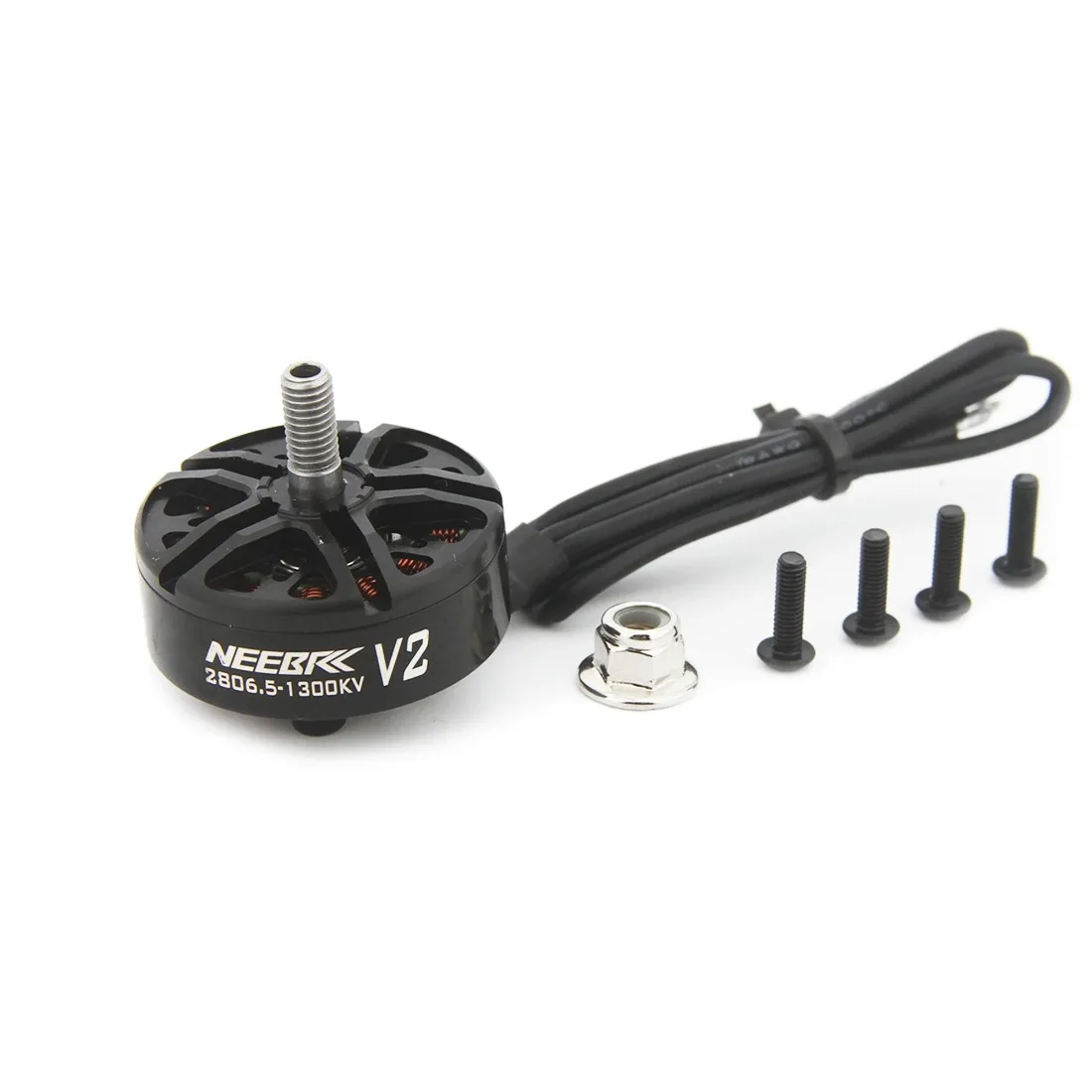

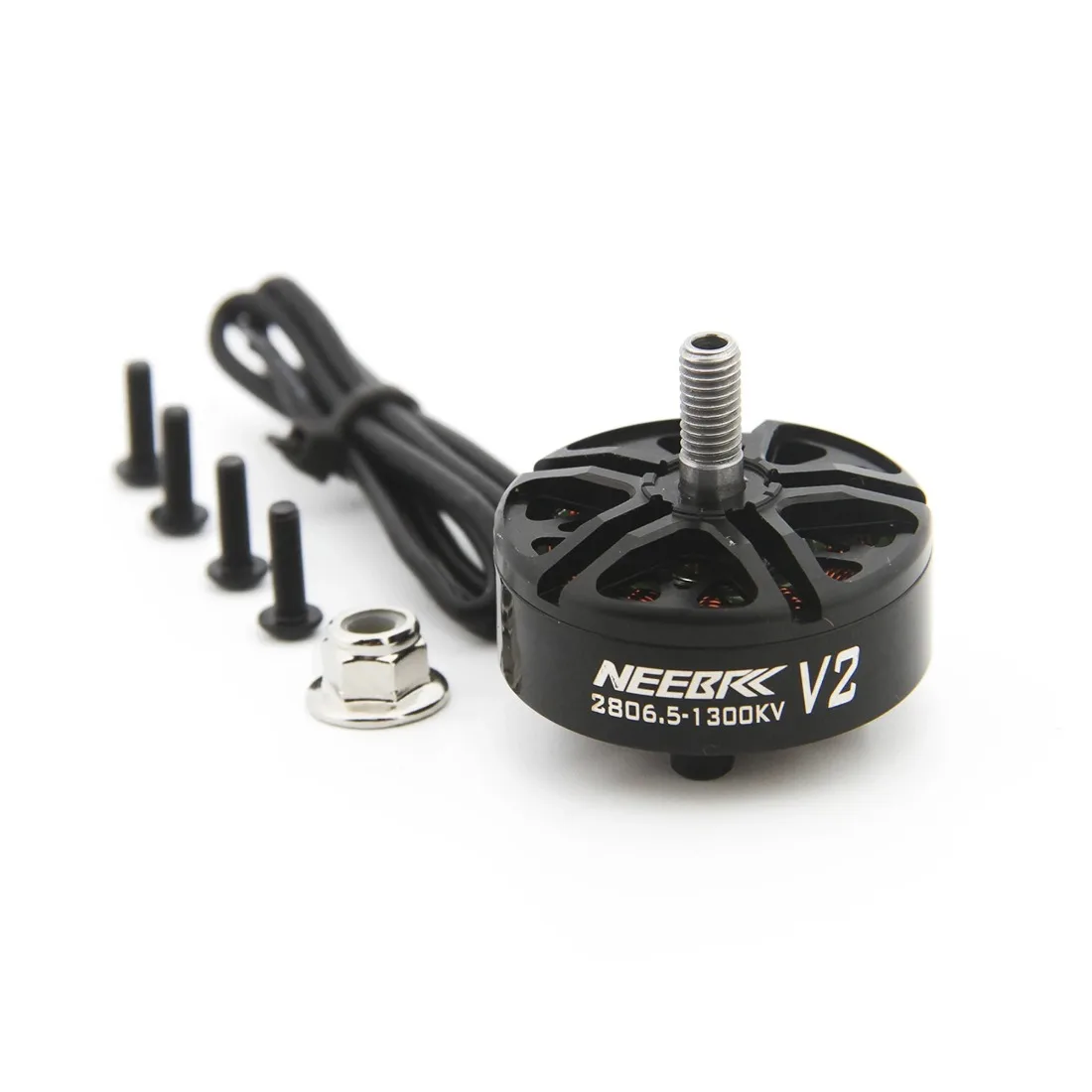

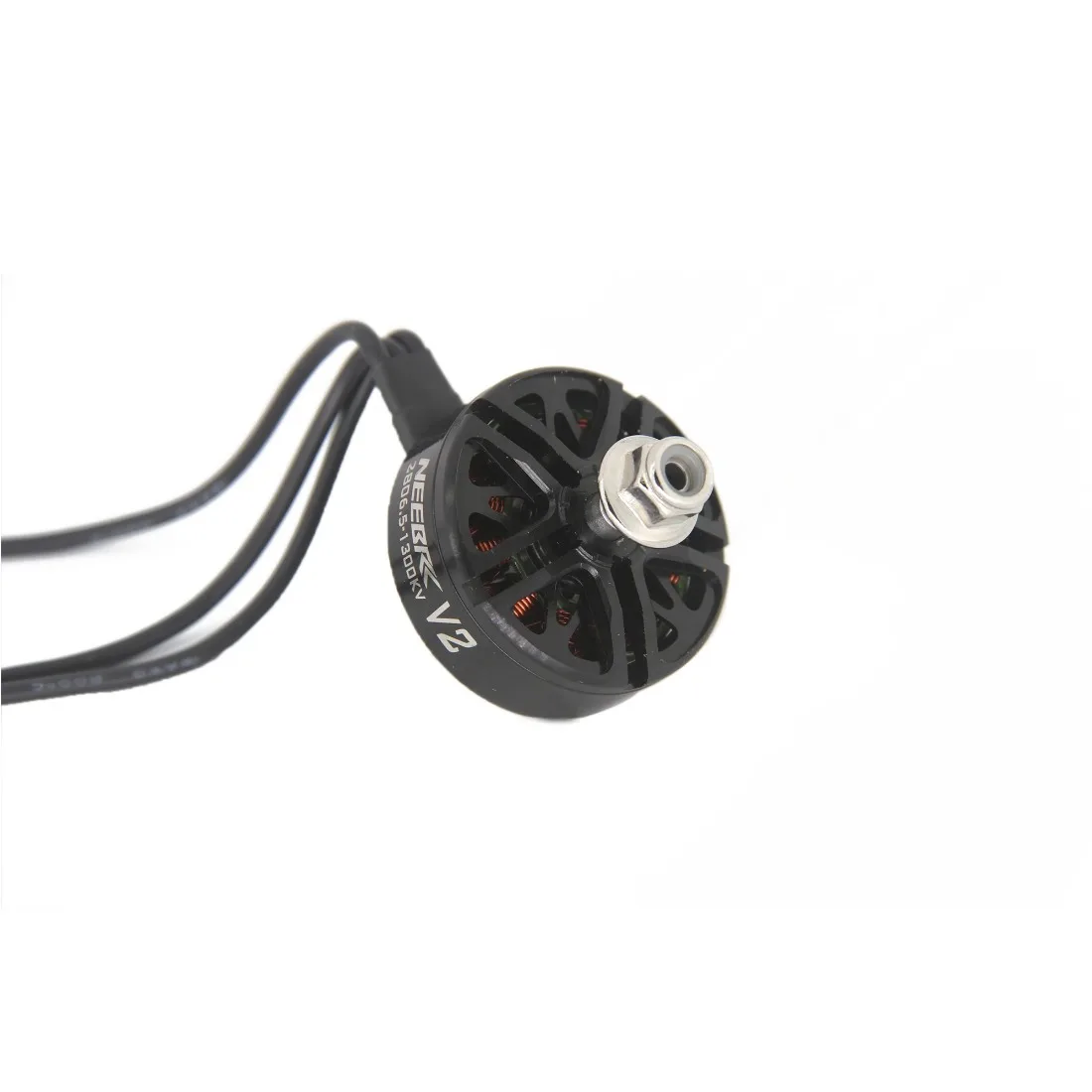

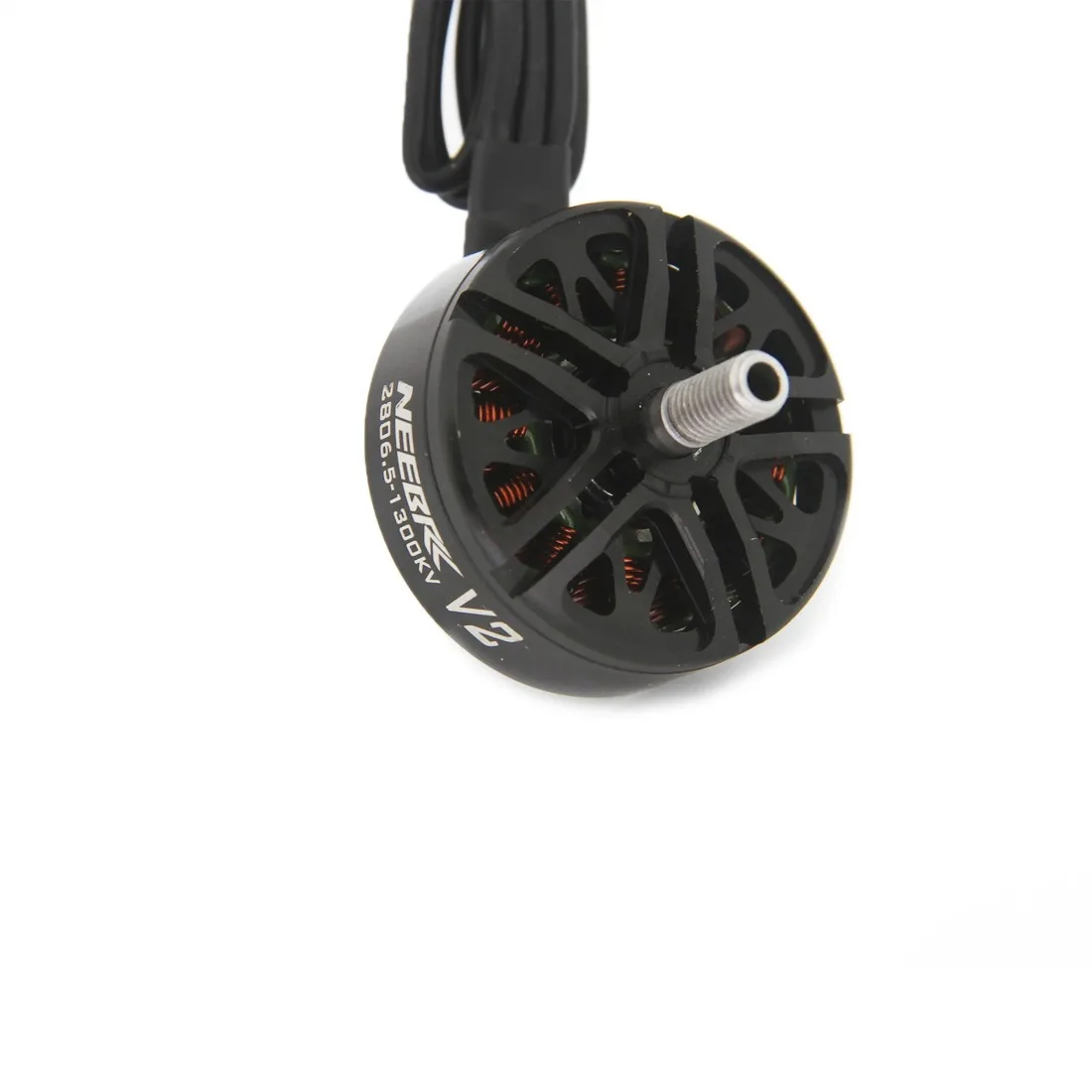

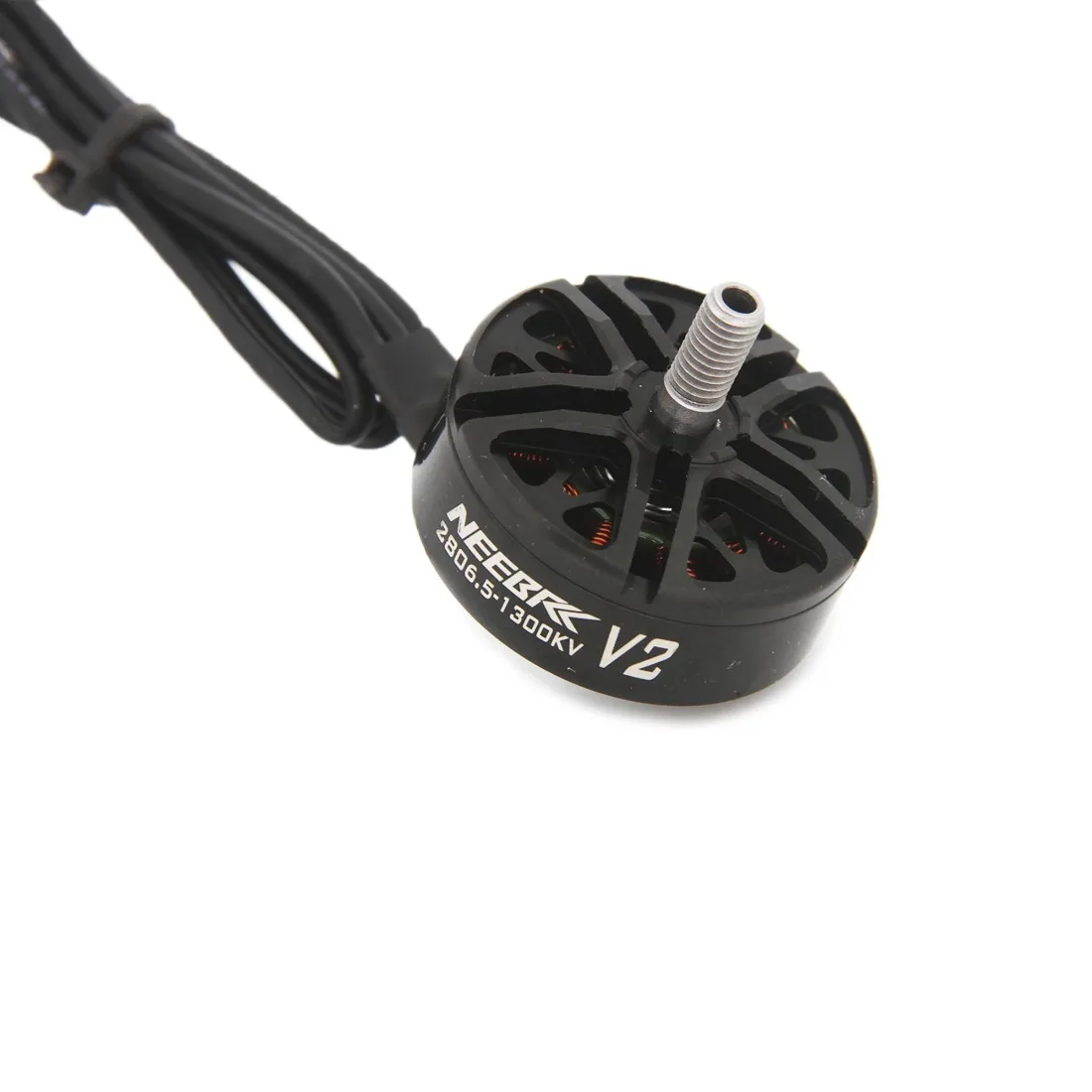

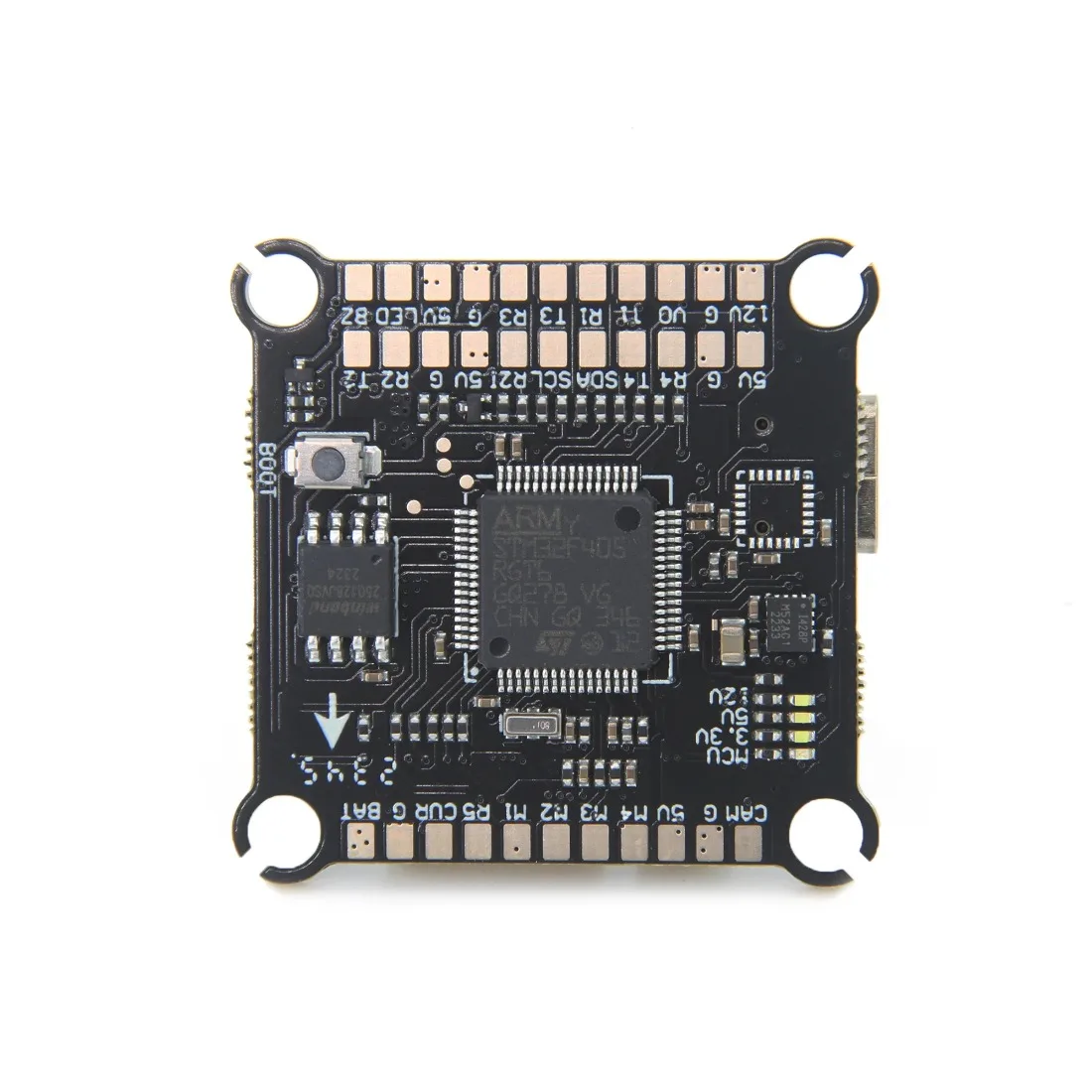

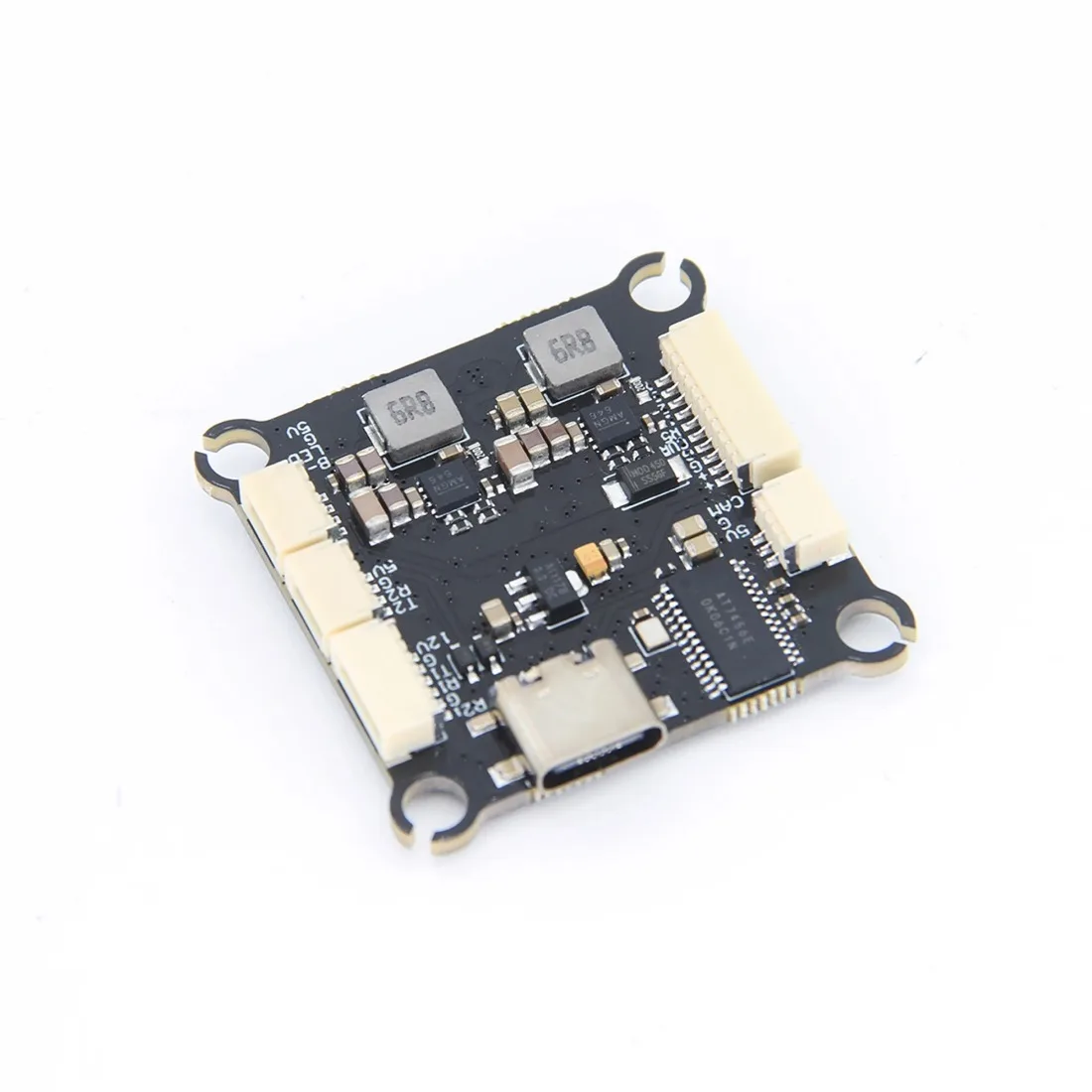

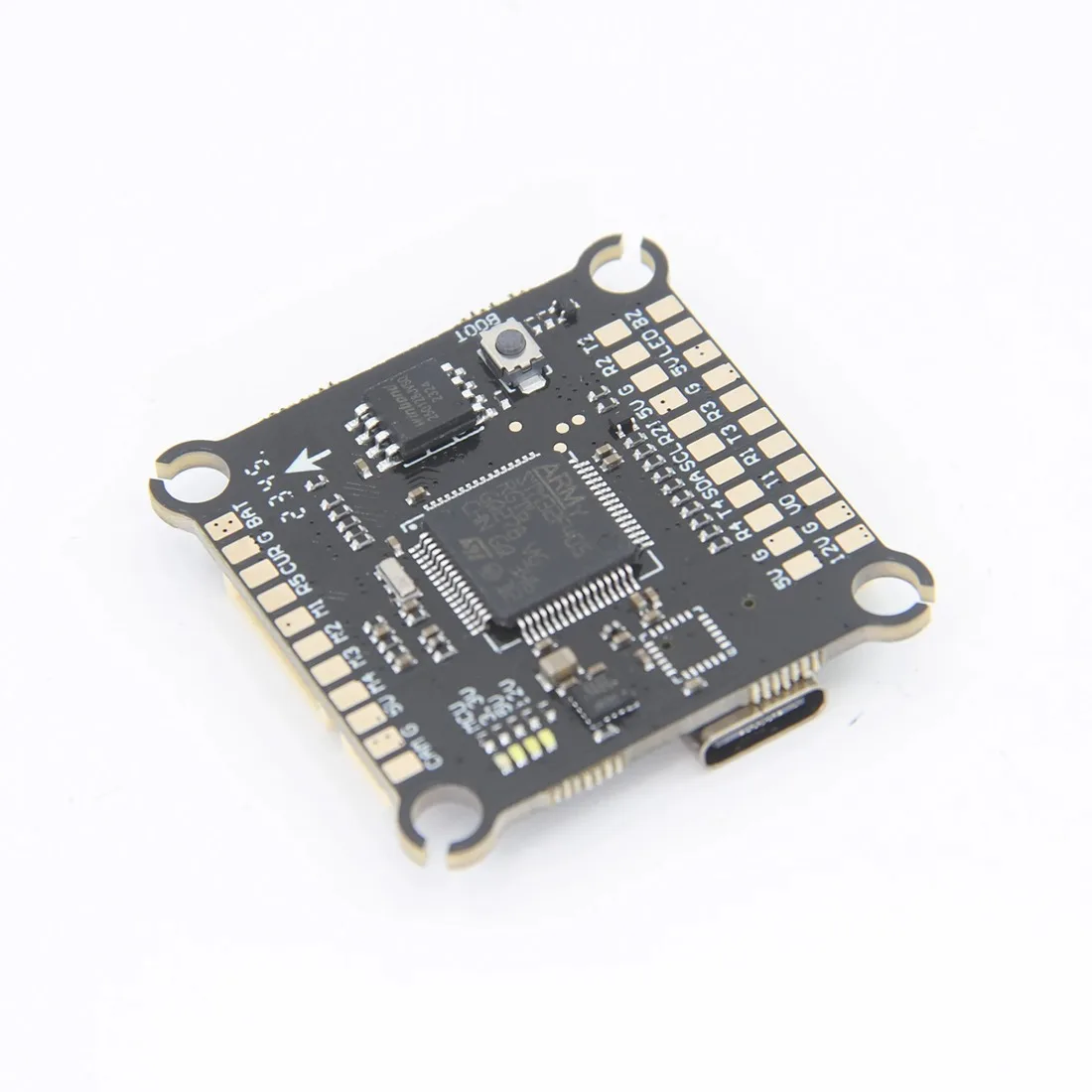

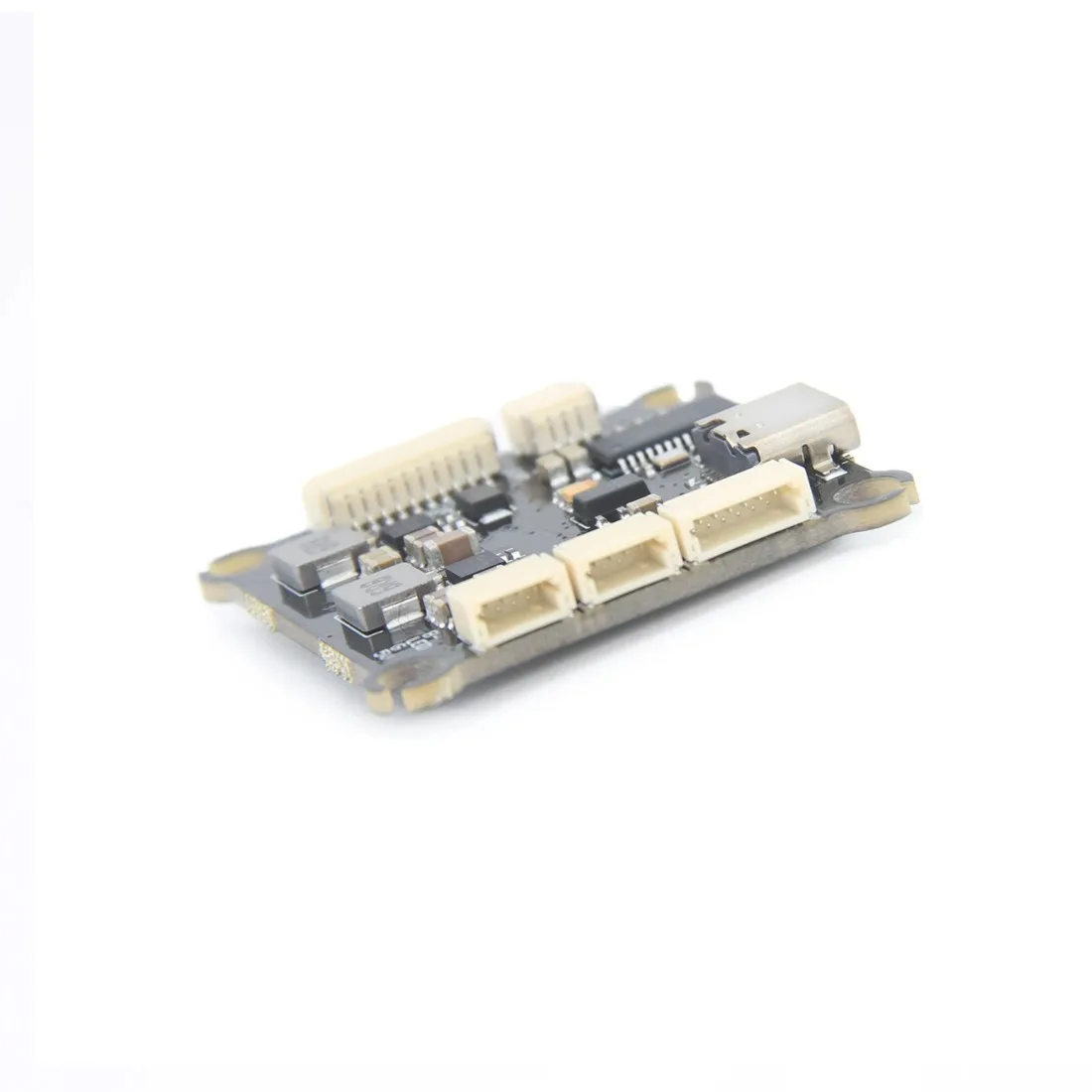

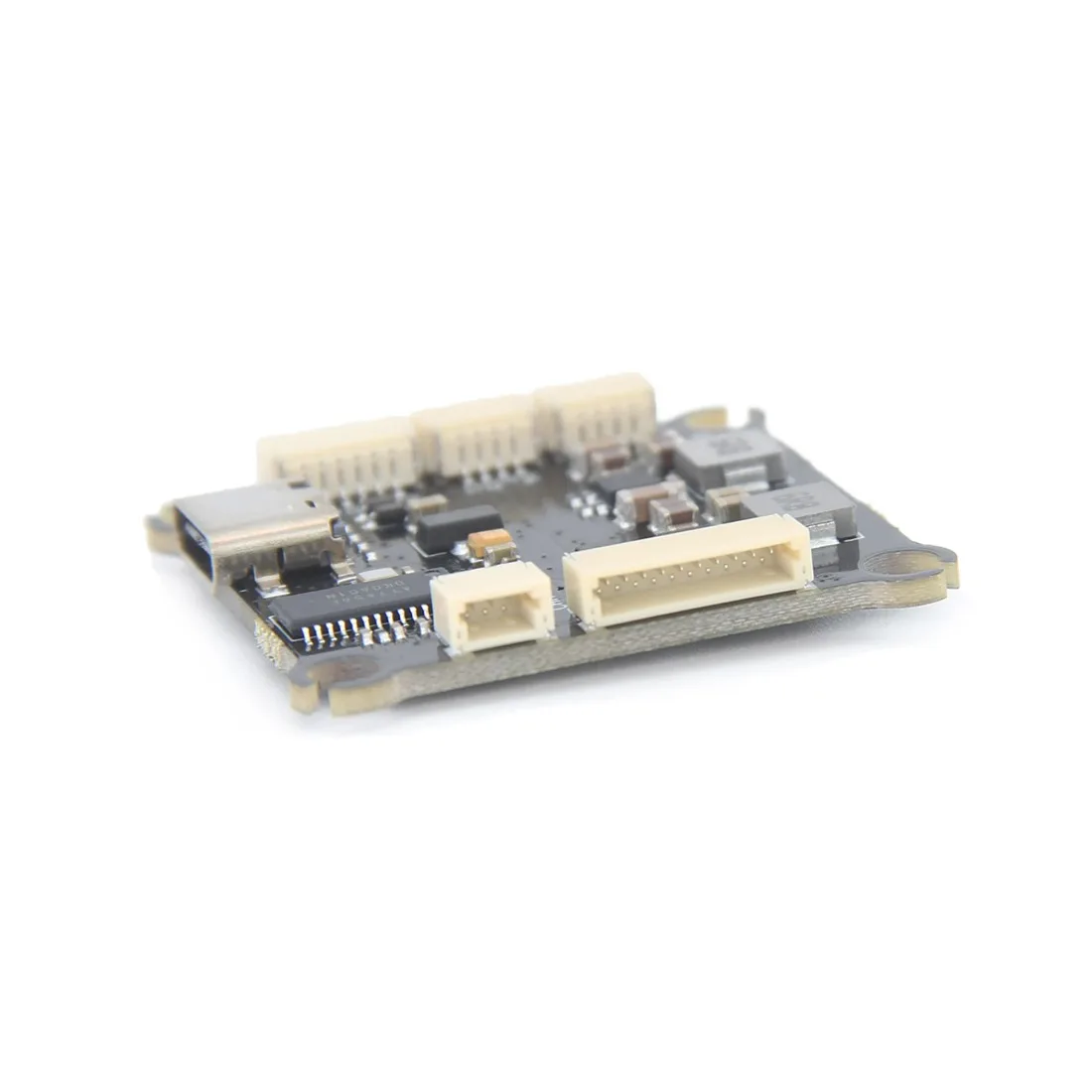

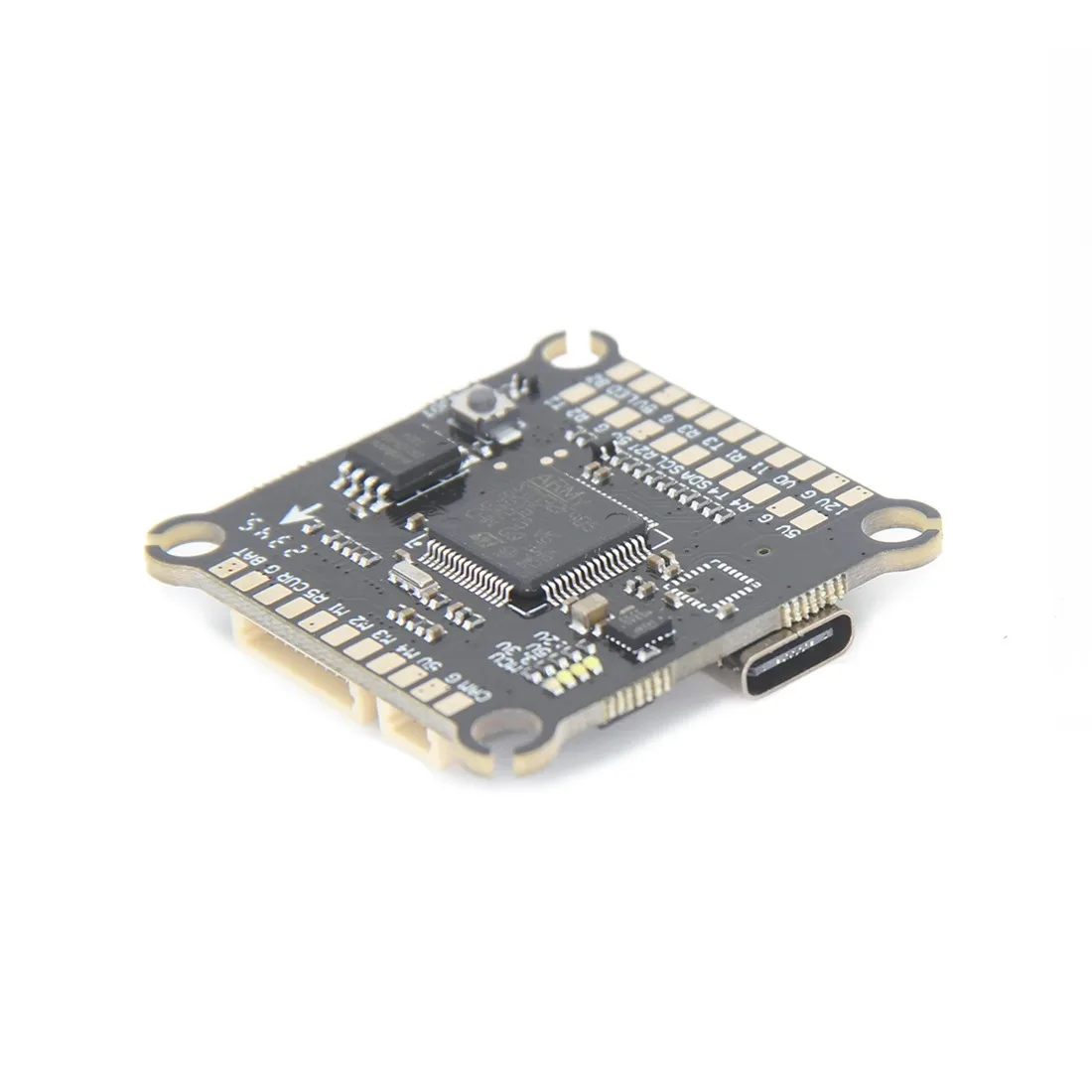

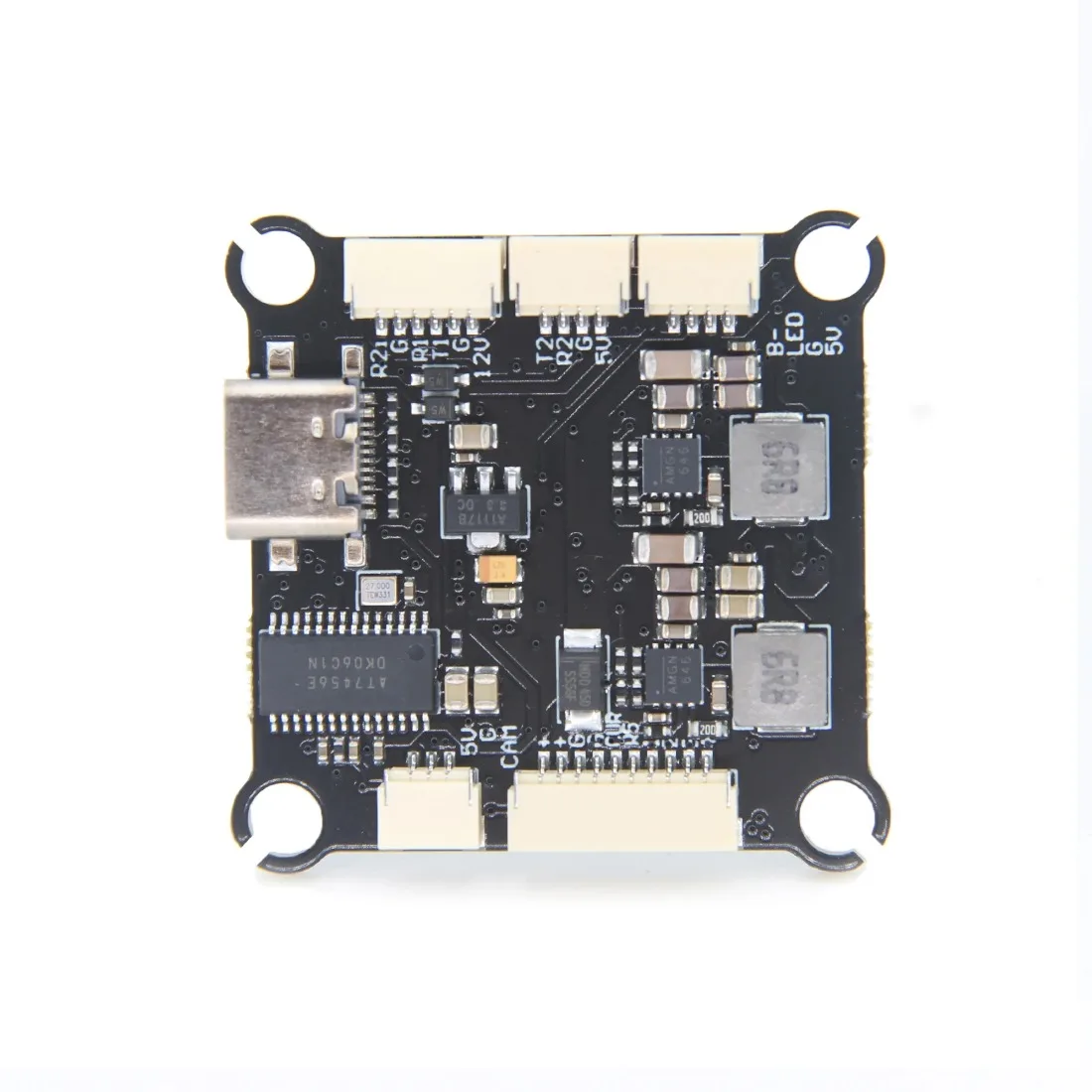

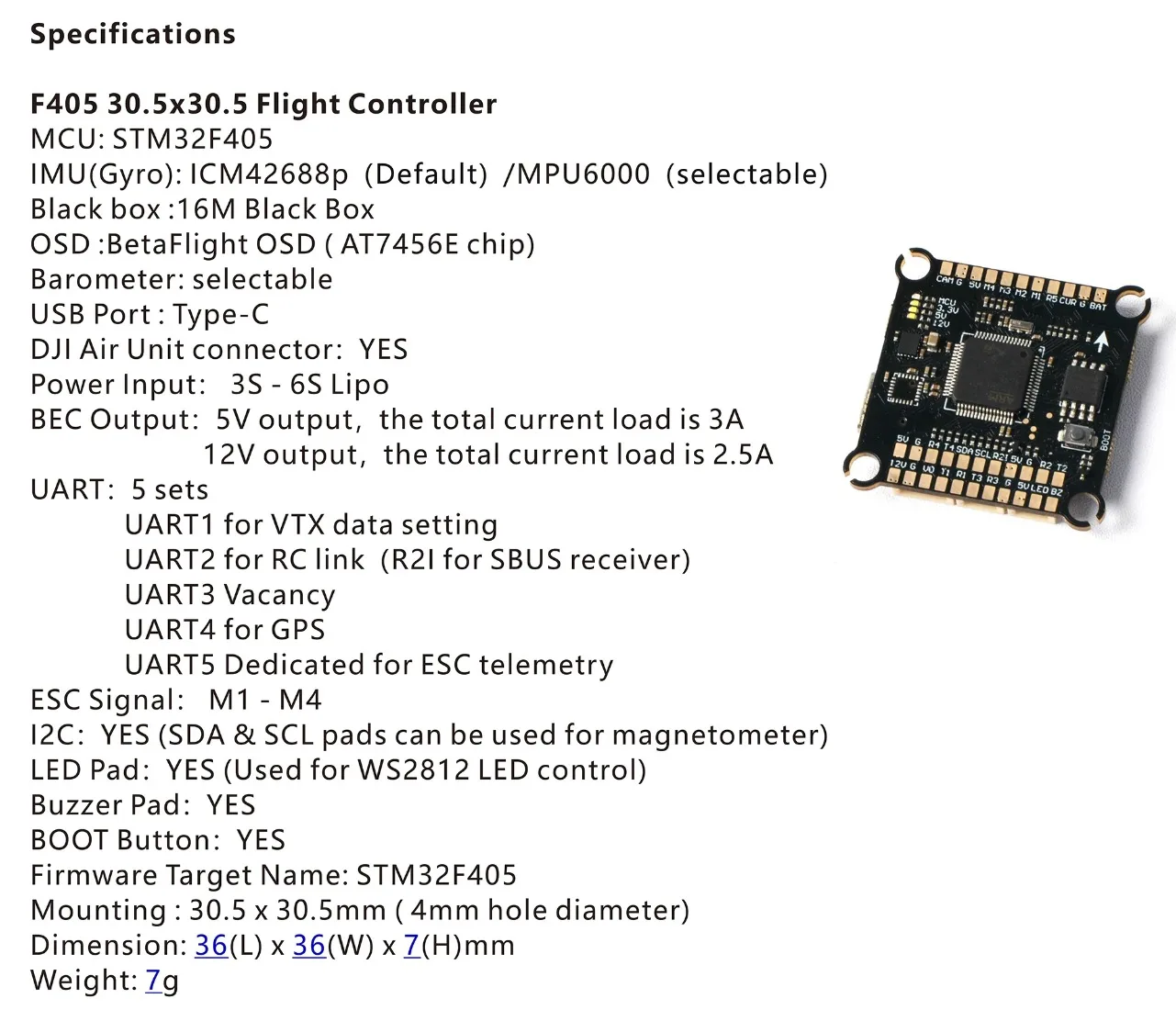

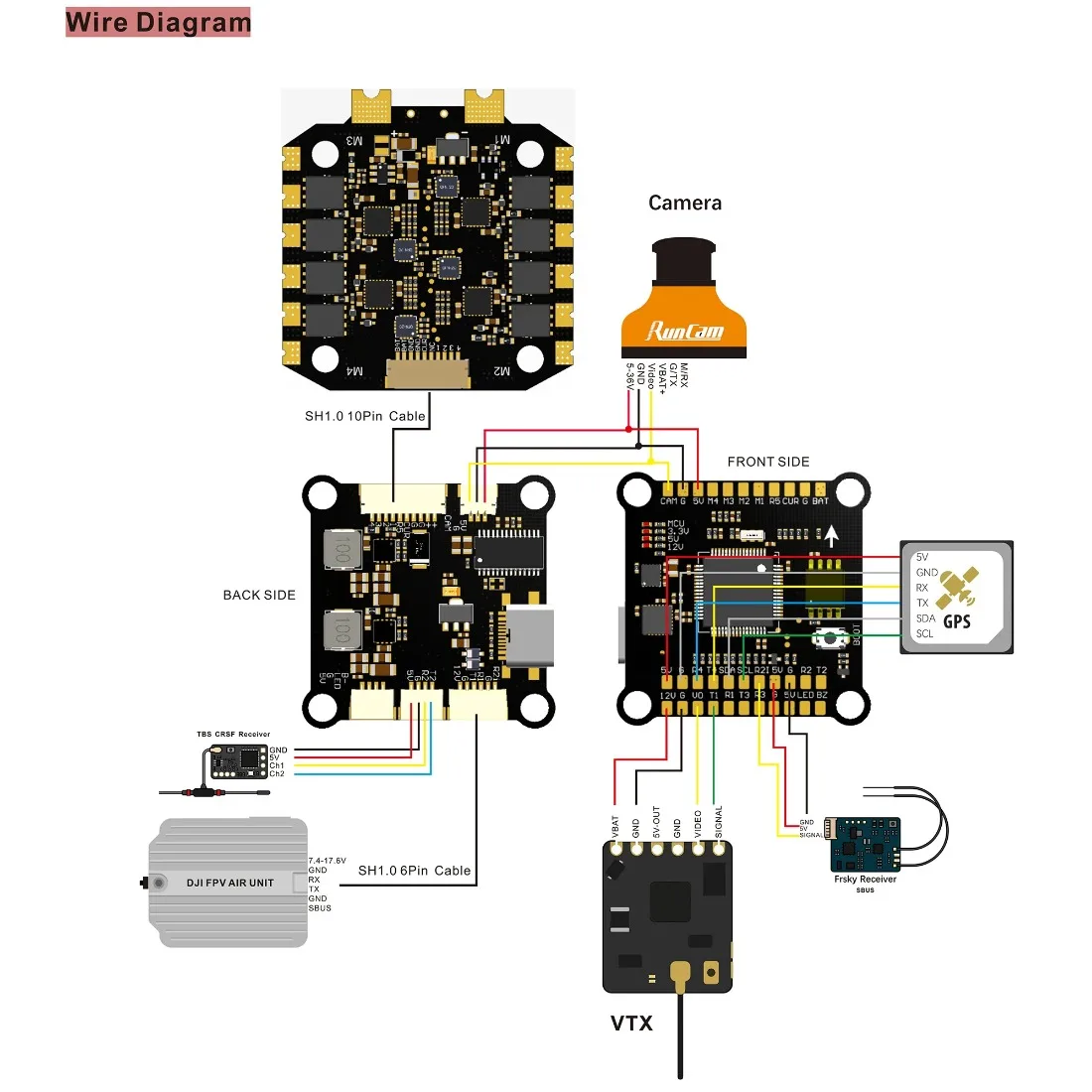

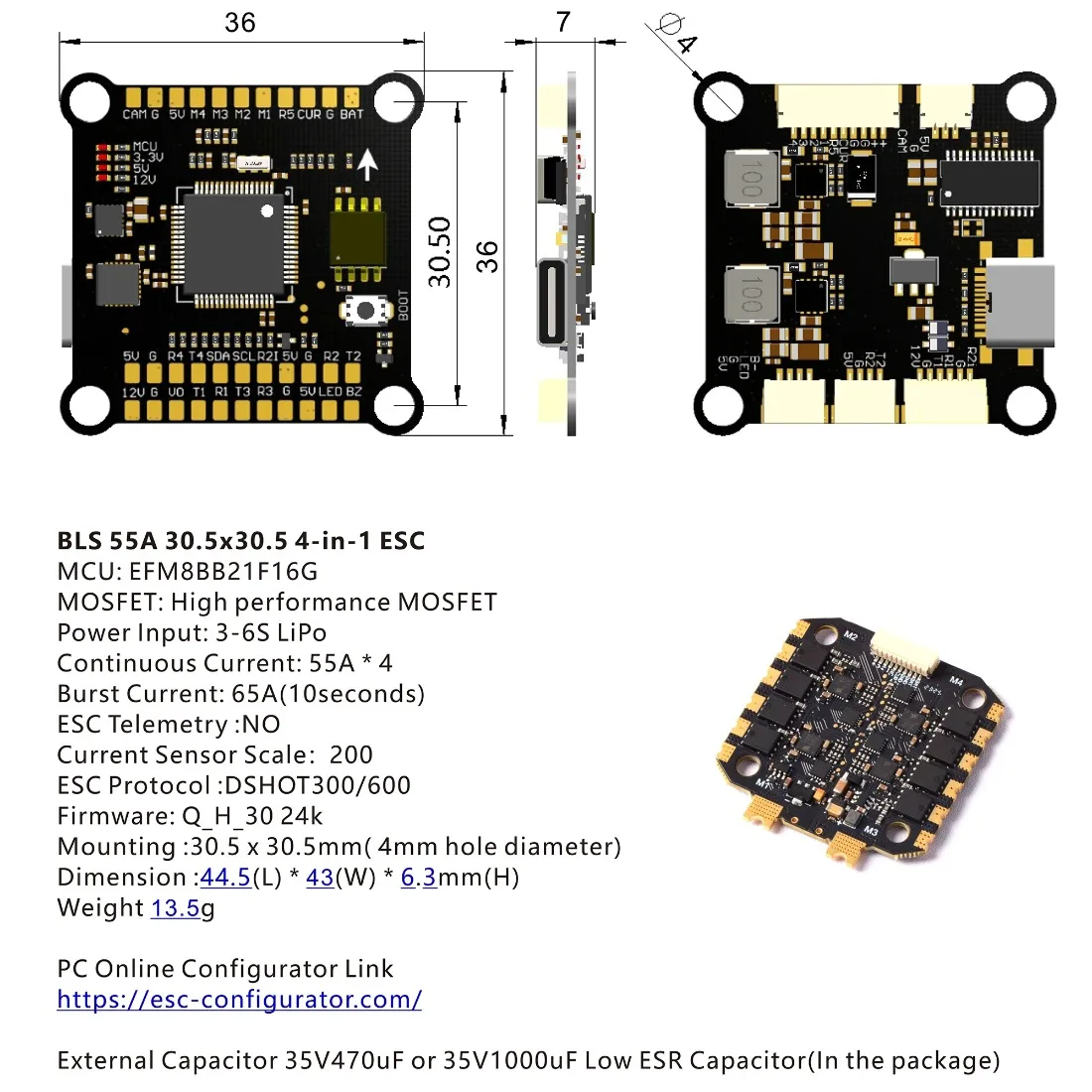

F405 FC:

MCU: STM32F405

IMU(Gyro): ICM42688p(Default)/MPU6000(selectable)

Black box :16M Black Box

OSD :BetaFlight OSD ( AT7456E chip)

Barometer: selectable

USB Port : Type-C

DJI Air Unit connector:YES

Power Input: 3S – 6S Lipo

BEC Output:5V/3A 12V/2.5A

UART:5 sets

I2C:YES

LED Pad:YES (Used for WS2812 LED control)

Buzzer Pad:YES

Mounting : 30.5 x 30.5mm ( 4mm hole diameter)

Dimension: 36(L) x 36(W) x 7(H)mm

Weight: 7g

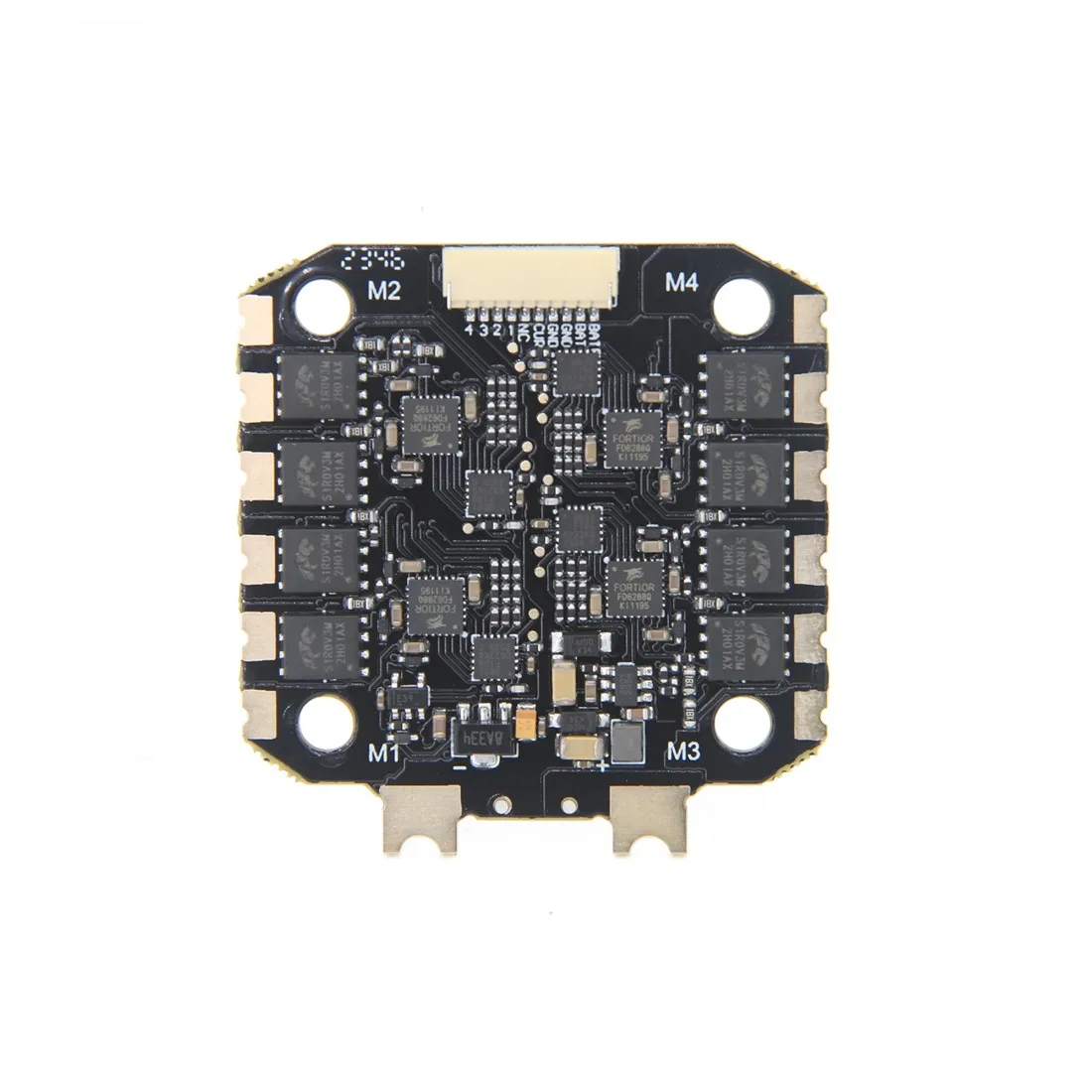

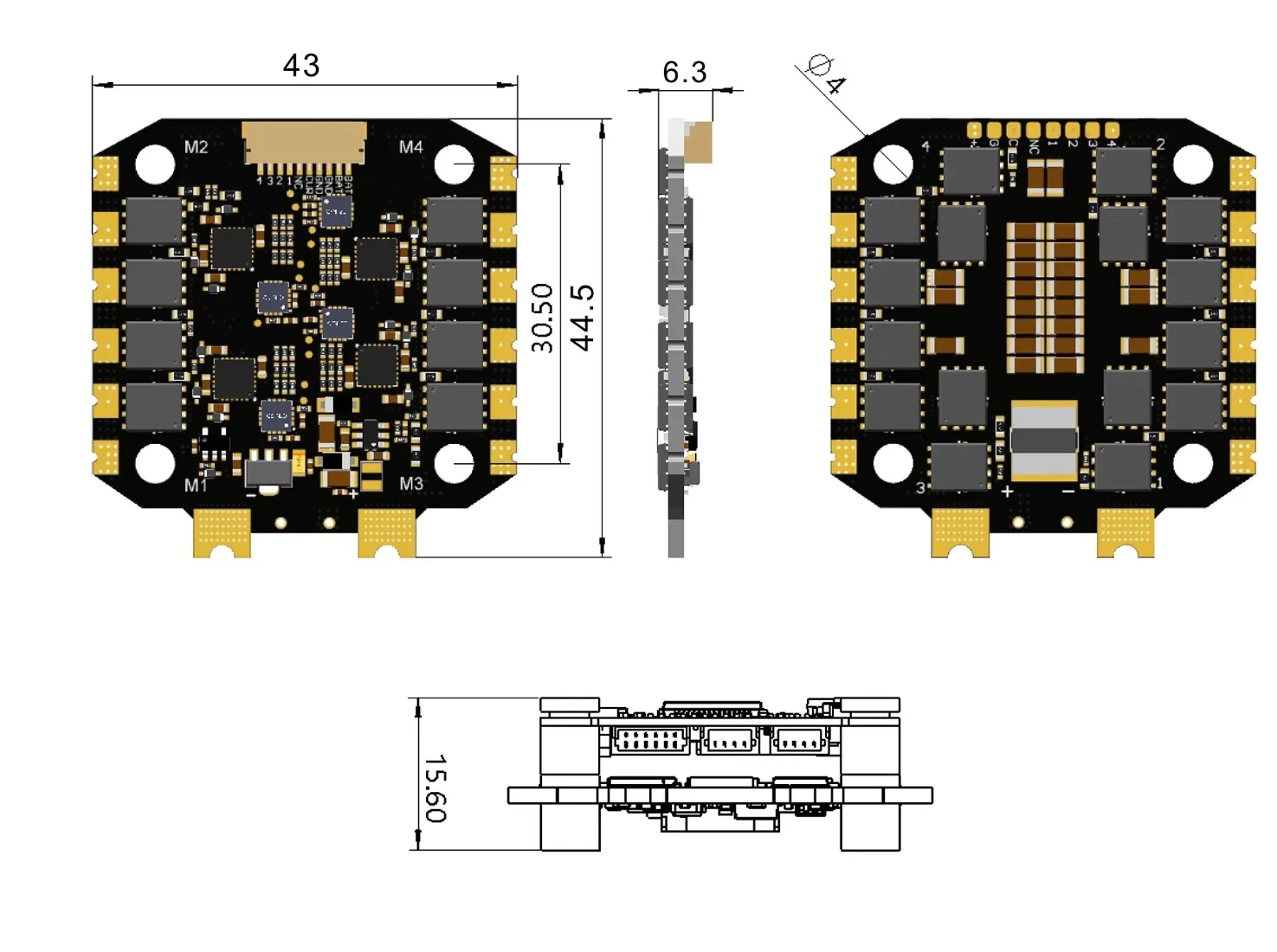

60A ESC:

MCU: EFM8BB21F16G

MOSFET: High performance MOSFET

Power Input: 3-6S LiPo

Continuous Current: 60A * 4

Burst Current: 65A(10seconds)

ESC Telemetry :NO

Current Sensor Scale:200

ESC Protocol :DSHOT300/600

Firmware: Q_H_30 24k

Mounting :30.5 x 30.5mm( 4mm hole diameter)

Dimension :44.5(L) * 43(W) * 6.3mm(H)

Weight 13.5g

ELRS 2.4GHz Receiver

Transmitter compatibility
This receiver can be used to frequency different brands of high frequency heads. The ELRS project is
an open source project, so as long as the high-frequency headers of the ELRS protocol are used, regardless of the brand, they can be linked to each other, but three conditions must be met:
1. The frequency should be the same, the same is 2.4G or the same433Mhz, etc
2. There are three types of firmware version certification standards: AU, EU, and FCC. To be consistent, for example, the high-frequency head flashes the FCC 3.0.0 firmware, then the receiver should also
flash the FCC 3.0.0 firmware or above;
3. None of them have a linking password, or they all have the same password.

Linking mode
1. After welding the receiver, quickly energize the aircraft three times, that is, ~ unplug the power immediately after powering on – unplug the power immediately – power on does not pull out; The interval is within 1.5 seconds, so that, if done correctly, the receiver’s light flashes rapidly twice in a cycle, indicating that it is in the binding. At this time, press the bind button of the remote control script to bind. When the linking is successful, the receiver light turns solid.
2. he receiver can’t enter the band state for the first time, and the light is always on. Generally, the TXRX port of some flight controllers is abnormal, causing the receiver to enter boot flashing mode when it is powered on, and only a TX RX on the flight controller needs to be changed at this time.
3. Why does my receiver light keep flashing? When you turn on the power, you have not entered the linking state, or the remote control receiver has no signal for 60 seconds, it will automatically enter the WIFI flashing mode, and the indicator light flashes quickly.
4. How to enter the wifi flashing mode to flash the firmware of the receiver? Regardless of it when it is powered on, it will enter the WIFI flashing mode in about 60 seconds, and the light will flash quickly.

WiFi flashing instructions
https://www.expresslrs.org/software/updating/wifi-updating/#method-1-hotspot

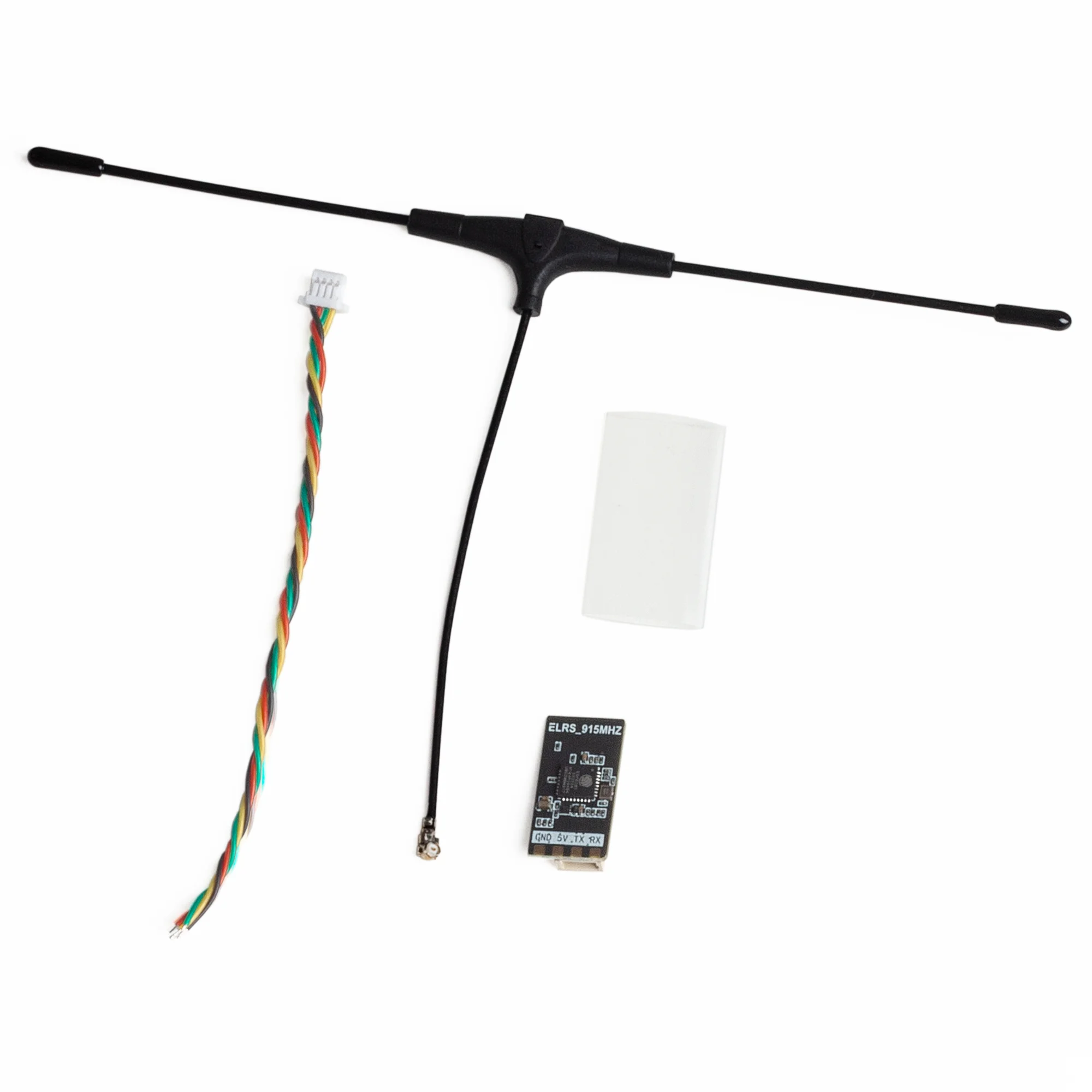

BelinRC series receivers, is based on ExpressLRS open source architecture and programs, the receiver uses low latency and high refresh rate RF chip, 25Hz-500Hz high refresh rate, very suitable for FPV competition and long-range FPV. At the same time, these receivers have ultra-light and ultra-small dimensions, which are easier to install and more concise aircraft.
Indicator Status: Double Flash: Code Mode
Slow flashing: No transmitting signal is received
Solid: The transmit signal is received

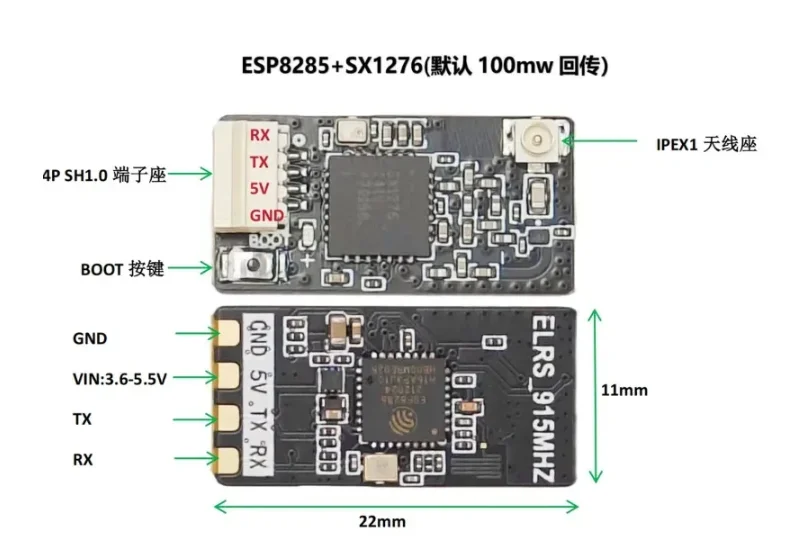

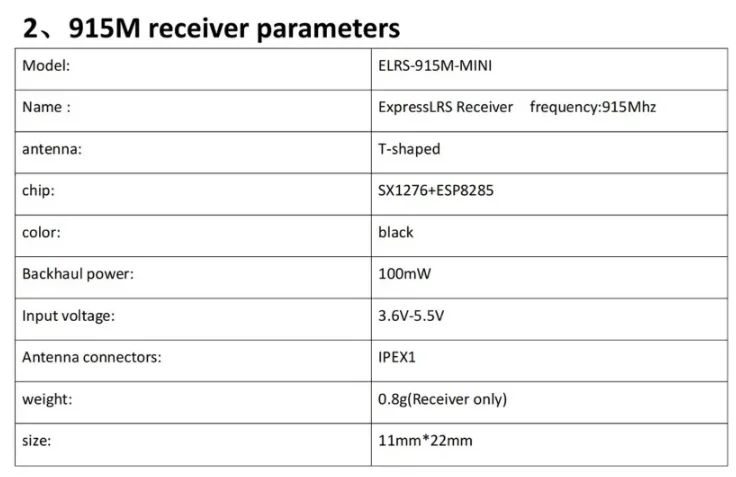

915M receiver parameters
Model: ELRS-915M-MINI
Name : ExpressLRS Receiver frequency:915Mhz
antenna: T-shaped
chip: SX1276+ESP8285
color: black
Backhaul power: 100mW
Input voltage: 3.6V-5.5V
Antenna connectors: IPEX1
weight: 0.8g(Receiver only)
size: 11mm*22mm

F405  Flight Stack:

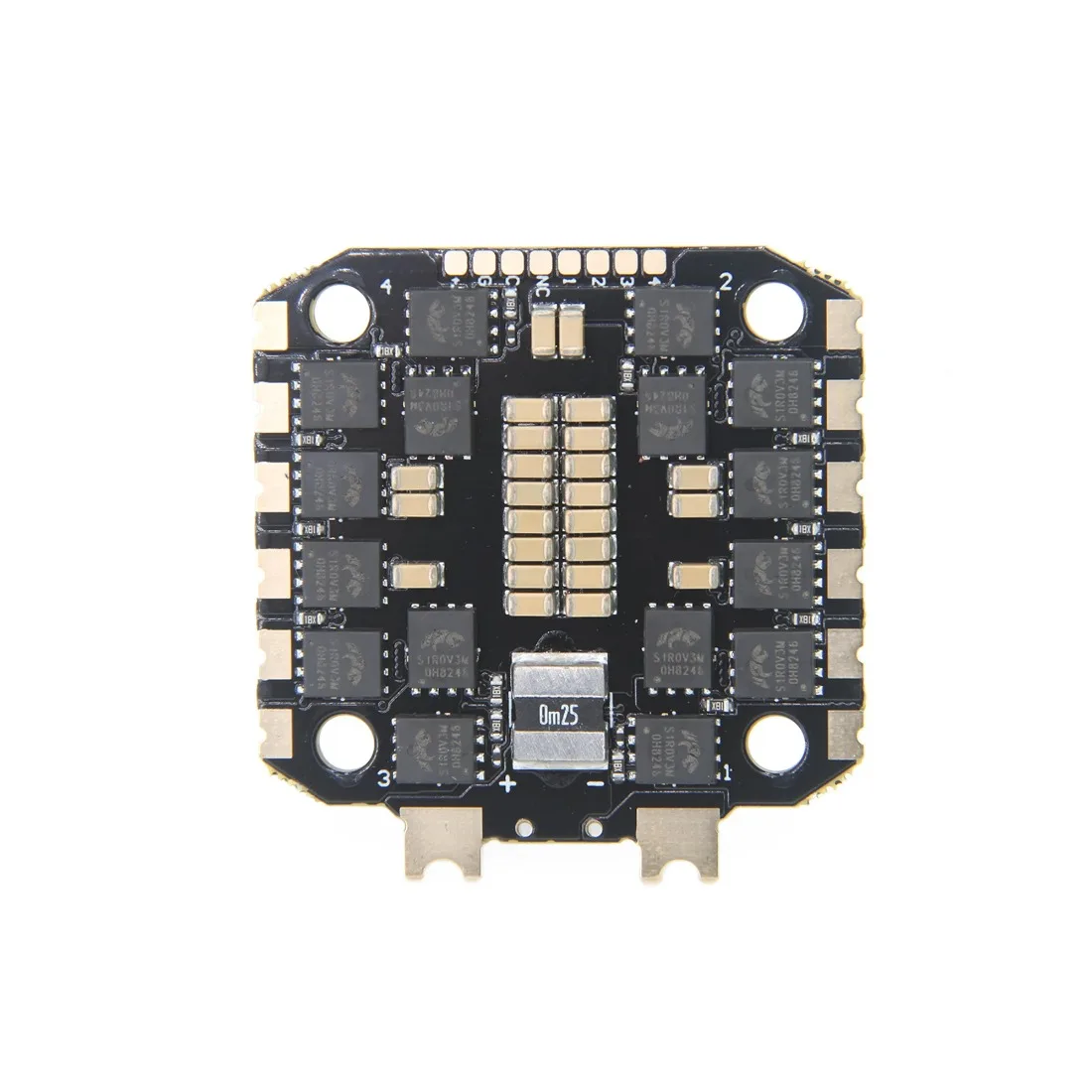

BLS 60A 30.5×30.5 4-in-1 ESC

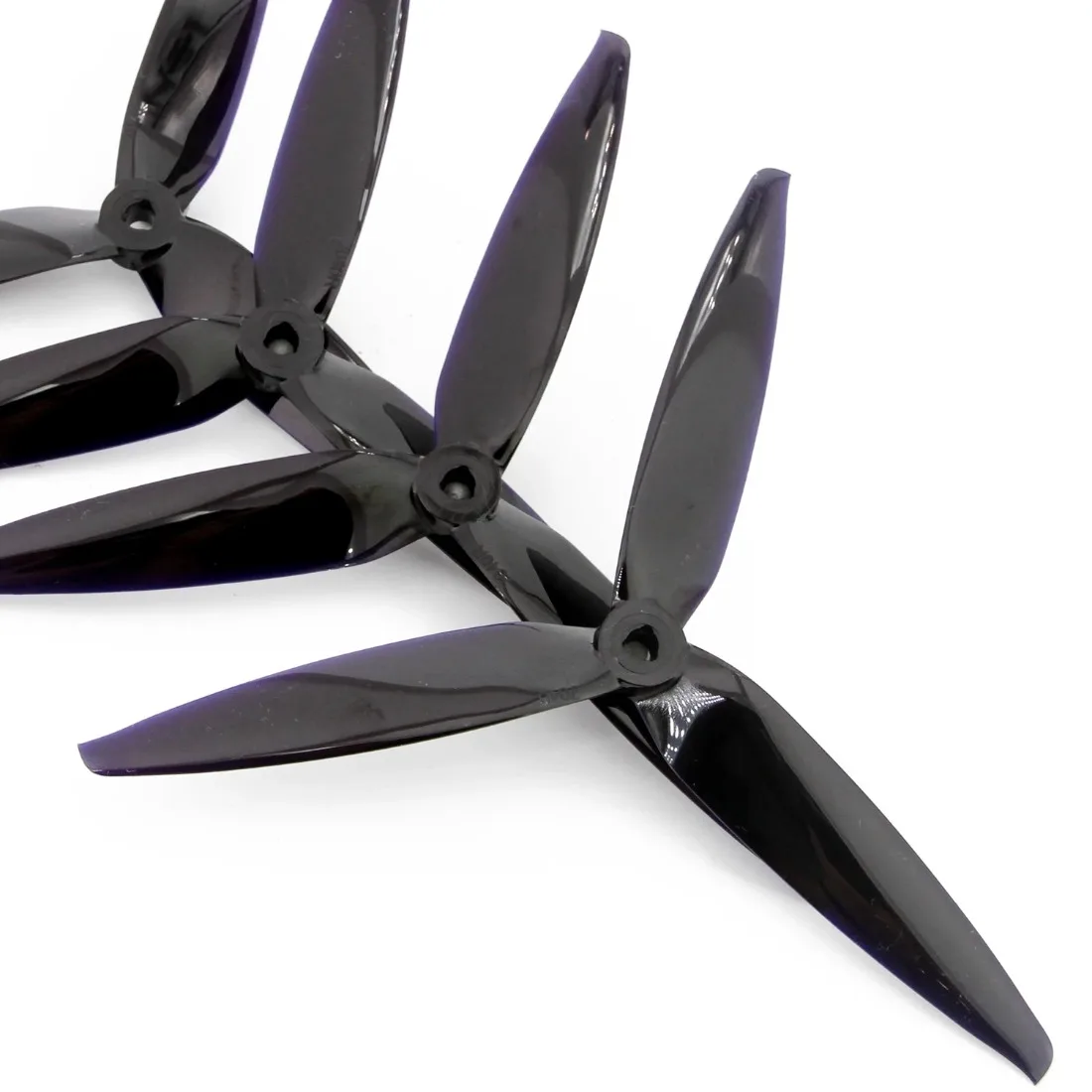

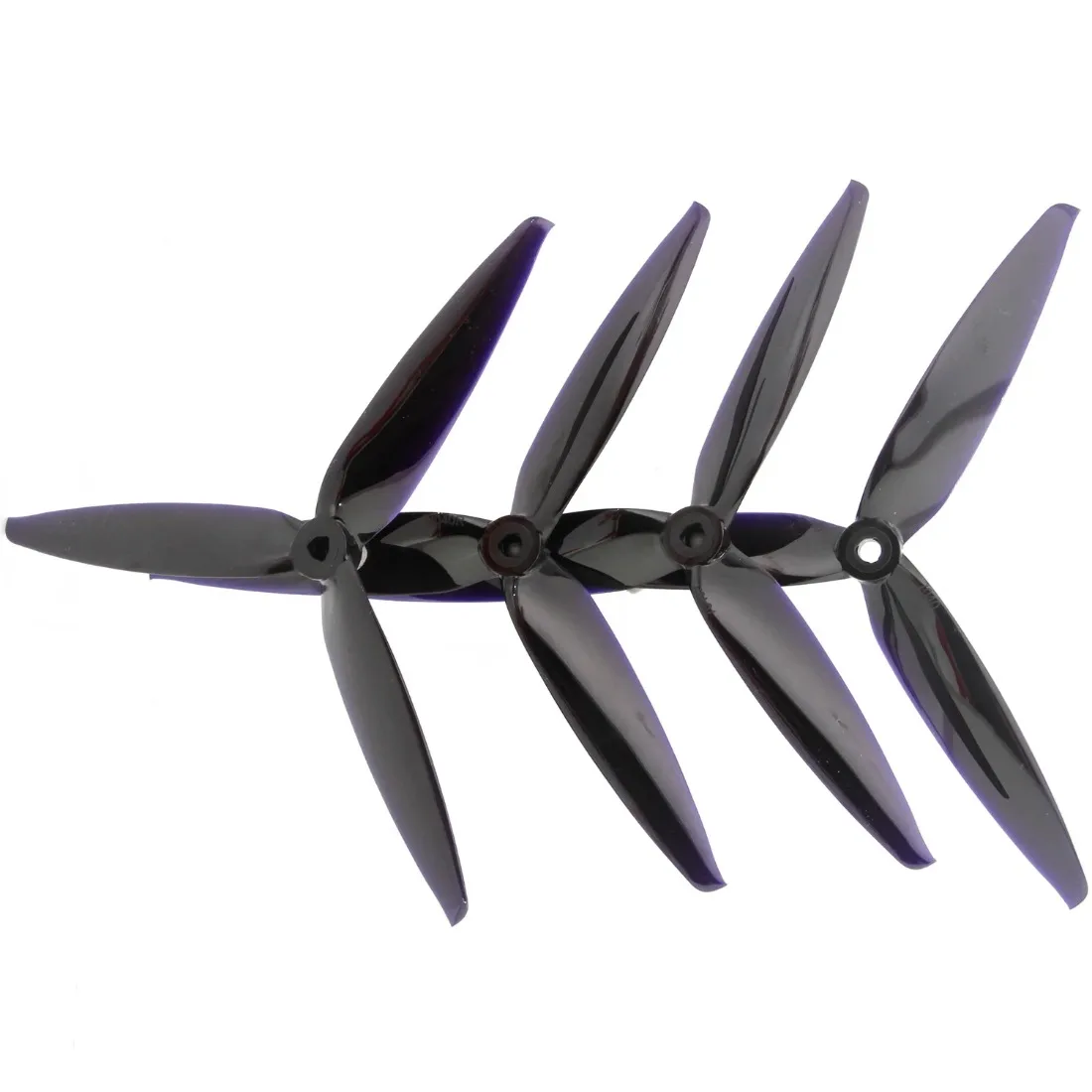

Propeller: 4pcs 7040 3-Blade Propeller
