- Data Storage Options : Cloud, NVR, Micro SD card, Memory Card, SD Card
- Function : Two-Way Audio, Pan-Tilt, Built-In Mic, Night Vision, Waterproof / Weatherproof, Built-In Siren
- Sensor : CMOS
- Special Features : Human Motion Tracking, Night Vision, Motion Detection, Waterproof / Weatherproof, Built-In Siren, Two-Way Audio, One-Way Audio
- Style : Bullet Camera
- Model Number : W608FIRC-5X-HS
- Brand Name : YCX/OEM
- Place of Origin : Guangdong, China
- Customized support : Online Technical Support, Customized Logo, Software Reengineering, OEM, ODM
- Video Compression Format : H.265
- Warranty : 2 Years
- Image Sensor : 8MP CMOS
- Video Resolution : 3840*2160
- IR Distance : 30-40 M
- Processor : Sigmaster SSC338Q
- Lens : 2.7-13.5mm motorized lens
- WDR/HDR : HDR DWDR
- Power Supply : PoE/DC12V 1A
- Other features : Micro/MicroSD Card is optional
- Scenario : Indoor/outdoor
- Smart features : Human/Vehicle/motion detection
- Application : outdoor, Indoor

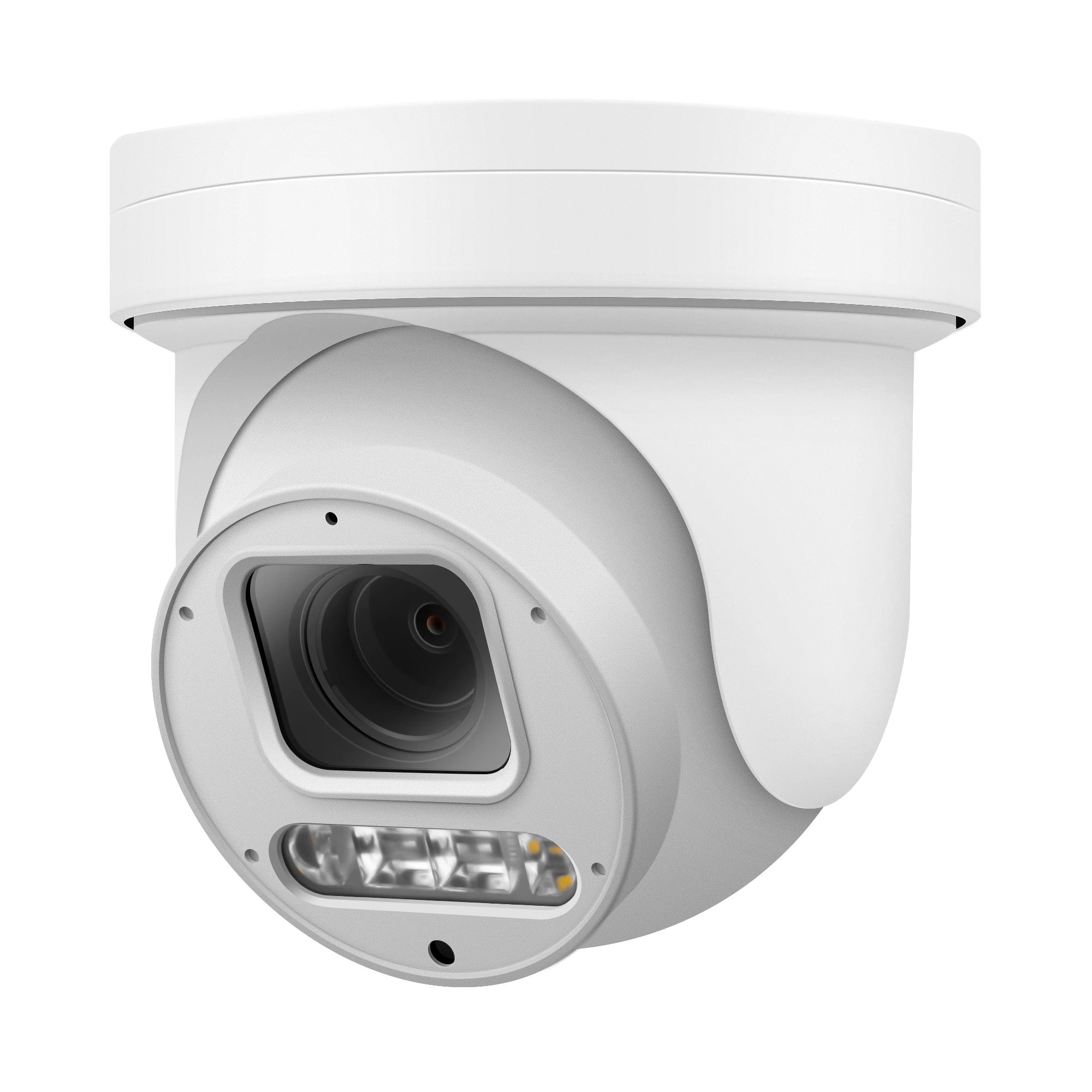

8MP Dual-light 5X Network POE PTZ Camera,Support Human/Vehicle Detection,active deterrence,two-way audio, support microsd card
Brief Introduction
●8MP HD Starlight Camera — This 8mp poe camera records everything at a high resolution of 3840 x 2160@20fps, have 1/2.8” 8Megapixel progressive CMOS high-performance sensor, enables achieve industry leading low-light performance at night and night vision up to 40m, allowing you to cover more ground and keep more things important to you.
●5x Optical Zoom, Smart265, Storage — This motorized zoom camera with auto focus provides a 2.7-13.5mm 5x optical zoom, cover a wide area with a 31°-113° field of view. Zoom in or out for more detail. Smart 265 technology reduces bitrate and storage requirements by up to 70% compared to standard H.264 video compression. Videos can be saved in the micro SD card up to 256GB, NVR, or FTP server.
●Intelligent DetectionIVS — Supports accurate human/vehicle and motion detection, to quickly and accurately respond to monitoring events in specific area, receive alert notifications through your smartphone with the free app,Free PC software or third-party software.
●IP66 Weatherproof PoE Camera — Built to weather any storm and the darkest of nights, this 8mp bullet camera features a heavy-duty weatherproof IP66 housing as well. Uses a single Ethernet cable to carry data and power. Simplified cabling means easier plug-and-play reliable connections for DIY enthusiasts.
●Reliable and Secure — This home 8MP security camera has CE certification, FCC certificate, and is firmware updatable. As well as life-long and professional technical support, if you have any questions, please feel free to contact us.
Product Description
key Features
* 1/2.8″ Sony CMOS sensor
* 4K resolution 3840 x 2160P
* Low illumination 0.01Lux
* 5x optical zoom lens
* Smart Human and Vehicle Detection Alarm
* Built-in Micand speaker, two-way audio
* Siren and voice alarm, flash alarm
* Day/Night, AWB/MWB, BLC, HLC, 2D/3D-DNR, Shutter, IR-CUT
* D-WDR, Flip, Defogging
* Multiply Style OSD Overlay, Motion Detection, Privacy Mask
* RTSP and O-nvif 17.06 compatible with many third-party NVR
* 264/H.265 three-stream media server
* Easy-to-use P2P Cloud service
* Support user authentication, video data encryption
* Support Alarm Snapshot to Email and FTP
* Multiply WEB browser IE,Firefox,Chrome,Edge,Safari
* Free PC Client, Mobile APP remote access
* RJ45 100mbps network port, IEEE802.3af 48v PoE
* Lightning protection 4000V
* Strong metalwater-proof housing, IP66
* 4pcs Array IR and warm-light Led
* IR distance 40meters, warm-light distance 40 meters
* 4K resolution 3840 x 2160P
* Low illumination 0.01Lux
* 5x optical zoom lens
* Smart Human and Vehicle Detection Alarm
* Built-in Micand speaker, two-way audio
* Siren and voice alarm, flash alarm
* Day/Night, AWB/MWB, BLC, HLC, 2D/3D-DNR, Shutter, IR-CUT
* D-WDR, Flip, Defogging
* Multiply Style OSD Overlay, Motion Detection, Privacy Mask
* RTSP and O-nvif 17.06 compatible with many third-party NVR
* 264/H.265 three-stream media server
* Easy-to-use P2P Cloud service
* Support user authentication, video data encryption
* Support Alarm Snapshot to Email and FTP
* Multiply WEB browser IE,Firefox,Chrome,Edge,Safari
* Free PC Client, Mobile APP remote access
* RJ45 100mbps network port, IEEE802.3af 48v PoE
* Lightning protection 4000V
* Strong metalwater-proof housing, IP66
* 4pcs Array IR and warm-light Led
* IR distance 40meters, warm-light distance 40 meters
Specification
|
Model
|
YC- M608FIRC-5X-HS
|
|
Camera
|
|
|
Image Sensor
|
1/2.8″ Sony CMOS
|
|
Effective Pixels
|
8 megapixels
|
|
Electronic Shutter
|
AUTO, 1/10s ~ 1/100000s
|
|
Min. Illumination
|
0.01Lux@F1.2AGC ON
|
|
Day/Night
|
Auto/Color/B/W/Timing
|
|
WDR
|
Digital WDR
|
|
White Balance
|
Auto/Manual
|
|
BLC /HLC
|
Support
|
|
DNR
|
2D/3D DNR
|
|
Other
|
Image adjust , Flip
|
|
Encode
|
|
|
Video Standard
|
H.265+/H.265/H.264/MJPEG
|
|
Video Resolution
|
MainStream:20fps@8MP3840x2160,30fps@6MP3072x2048/5MP2592x1944/4MP/3MP/1080P/720P,etc.
Sub stream: 720×480/VGA640x480/360P/QVGA@30fps,etc. Third stream:1080P/720P/CIF@10fps |
|
Video Bitrates
|
512Kbps – 12Mbps, VBR/CBR
|
|
Audio Standard
|
G.711-u/G.711-a/AAC
|
|
Two-way Audio
|
Yes
|
|
Smart Detection
|
Smart Human and Vehicle Detection
|
|
Micro-SD Slot
|
Max. 512G
|
|
Reset Key
|
Yes
|
|
IR&warm light Led
|
|
|
Led
|
2pcs array IR Leds &2pcs warm Leds
|
|
Distance
|
40 m IR, 30 m warm light
|
|
Lens
|
|
|
Focal length
|
2.7-13.5 mm AF
|
|
Zoom
|
5x optical zoom
|
|
PTZ
|
|
|
Pan/Tilt Range
|
Pan: 0° ~ 280°; Tilt: 0° ~ 90°
|
|
Preset Point
|
10
|
|
Control Speed
|
Pan: 15° /s; Tilt: 15° /s
|
|
Guard Position
|
Support
|
|
Power-off Recovery
|
Support
|
|
Network Services
|
|
|
Protocol
|
HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS/RTMP, etc.
|
|
P2P
|
Yes
|
|
Web
|
IE, Firefox, Chrome, Edge, Safari
|
|
Media
|
CMS, Android, IOS
|
|
O-NVIF
|
17.06 compatible
|
|
General
|
|
|
Network Port
|
1-RJ45, 100Mbps, PoE 48V in
|
|
Power Supply
|
12 VDC ± 10% 2A
|
|
Power Consumption
|
< 15 W
|
|
Operating Temp.
|
-30℃-+60℃, 10%-90%RH
|
|
Size
|
Φ120mm×110mm
|
|
Weight
|
0.68kg
|
|
Operating Temp.
|
-30℃-+60℃, 10%-90%RH
|
|
Size
|
Φ137mm×234mm
|
|
Weight
|
2.3kg
|
Connection Diagram
FAQ
Does this camera work with Hik-vision NVR ?
A: Featured with Hik0-vision private agreement, this camera can plug & play with Hik-vision NVR. -Adding Method: Plug & Play,
Protocol: Hik-vision .
Q: What kind of power adapter does this camera work with?
A : This 5MP Dome Camera works with PoE injector, 802.3af standard, 48V for power and video transmission. Also, 12V 1A power
adaptor is a option.
Q: What about the range of work temperature?
A: The camera could work properly range -40~60°
Q: Is there SD Card slot?
A: Yes, it accepts microSD/SDHC/SDXC cards up to 256GB
A: Featured with Hik0-vision private agreement, this camera can plug & play with Hik-vision NVR. -Adding Method: Plug & Play,
Protocol: Hik-vision .
Q: What kind of power adapter does this camera work with?
A : This 5MP Dome Camera works with PoE injector, 802.3af standard, 48V for power and video transmission. Also, 12V 1A power
adaptor is a option.
Q: What about the range of work temperature?
A: The camera could work properly range -40~60°
Q: Is there SD Card slot?
A: Yes, it accepts microSD/SDHC/SDXC cards up to 256GB
Q: Will this camera work with Da-hua or other brand NVR?
A: Sure, it could work with Da-Hua or other brand NVR with 0n-vif protocol. Our cameras are setting H.265 by default. If your NVR only support H.264. Please modify the cameras to H.264 accessing web interface to start.
Q: Can the camera zoom from the app?
A: This Bullet camera features 3.6mm lens by default, could not zoom in/out.
Q: Does this camera record video with voice?
A: Yes, this camera built-in internal Microphone!
Q: Does this camera can activate record on & off whem motion is detected?
A: Of course, besides the motion detection, this camera could filter false alarm messages.It can focus on human/vehicle targets, only send you a message only when humans and vehicles are detected.
Q: Why does the nvr not show image after adding your ip camera?
A: Please make sure your nvr supports H.265 video compression and 5MP resolution, if your NVR only supports h.264 please switch the camera to h.264 mode on webpage; set lower resolution of the camera if you NVRs are not compatible to decode 5mp resolution.
Q: Is this camera compatible with Google Chrome web browser?
A: Sure, this camera is compatible with Google Chrome, IE, firefox, Microsoft edge,safari
Q: Can I use this camera with my NAS ?
A: Yes, our IP Camera can work with Milestone, Synology NSA, Qnap NAS, Ispy
A: Yes, this camera built-in internal Microphone!
A: Of course, besides the motion detection, this camera could filter false alarm messages.It can focus on human/vehicle targets, only send you a message only when humans and vehicles are detected.
Q: Why does the nvr not show image after adding your ip camera?
A: Please make sure your nvr supports H.265 video compression and 5MP resolution, if your NVR only supports h.264 please switch the camera to h.264 mode on webpage; set lower resolution of the camera if you NVRs are not compatible to decode 5mp resolution.
A: Sure, this camera is compatible with Google Chrome, IE, firefox, Microsoft edge,safari
Q: Can I use this camera with my NAS ?
A: Yes, our IP Camera can work with Milestone, Synology NSA, Qnap NAS, Ispy
Packing & Delivery
Recommend Products
Company Profie
Our Services
Warranty & RMA
2 years free repair and lifetime technical support provided after the shipment date.Any product proves defective under normal usage, we will repair or replace it by free of Charge.> If you could repair the products by yourself, we will supply the spare parts.> If you couldn’t repair the products, please sent back to us, and we repair and afford 50% freight charge.All our products are 100% passed strictly quality inspection before delivery. our detective rate is less than 1%
OEM & ODM
> OEM Silkprint LOGO/Sticker/Box/Manual/Software/Carton Box, Free of Charge with MOQ> ODM Projects acceptable and welcome to your enquiries!
Payment Terms
T/T, Paypal, Western Union, Sinosure & L/C> We accept T/T 30% deposit to arrange production,70% balance payment when goods ready.> If order value less than 20,000USD$, we should get 100% payment before production> Sinosure & L/C acceptable according to the order amount
MOQ
Welcome trial order! Sample Order no MOQ; after sample order, MOQ 10pcs per model.Silkprint OEM logo MOQ 100pcs, OEM Design box MOQ 1000pcs.
How to order from us?
> Please confirm the model no. & quantity that you would like to purchase with our sales person, or email to us> We will send you a Proforma Invoice to specify net cost of mentioned goods, and other relevant charges once you confirm the order.> After you arrange the payment and send us the bank slip, Your order will be put into production, and let your know the delivery date in 2 days.> When the goods are ready, we will send by DHL, by air or by sea, or other shippiong method appointed by the customers. and let you know the tracking number and estimated time of arrival.
Technical Support
Professional technical support team 24 Hours Online!
Contact Us
For More, Please feel free to contact us & Welcome to Visit our Factory in Shenzhen. Welcome to visit our official website www.ycxcctv.com to view video demos, download product catalog and read CCTV technical articles http://www.mydownload.store.Choose YCX, Guard Your Safety, Secure Your World! ^_^
