- Data Storage Options : Cloud, Full HD, Memory Card
- Function : Two-Way Audio, Pan-Tilt, Night Vision, Reset, Built-In Mic, Built-in Mic
- Sensor : CMOS
- Special Features : Night Vision, Two-Way Audio, Human Motion Tracking, Motion Detection, Sound Detection, Pan-Tilt
- Style : pan-tilt camera
- Model Number : VQS003-G-1
- Brand Name : JOAREON
- Customized support : Customized Logo, OEM, ODM

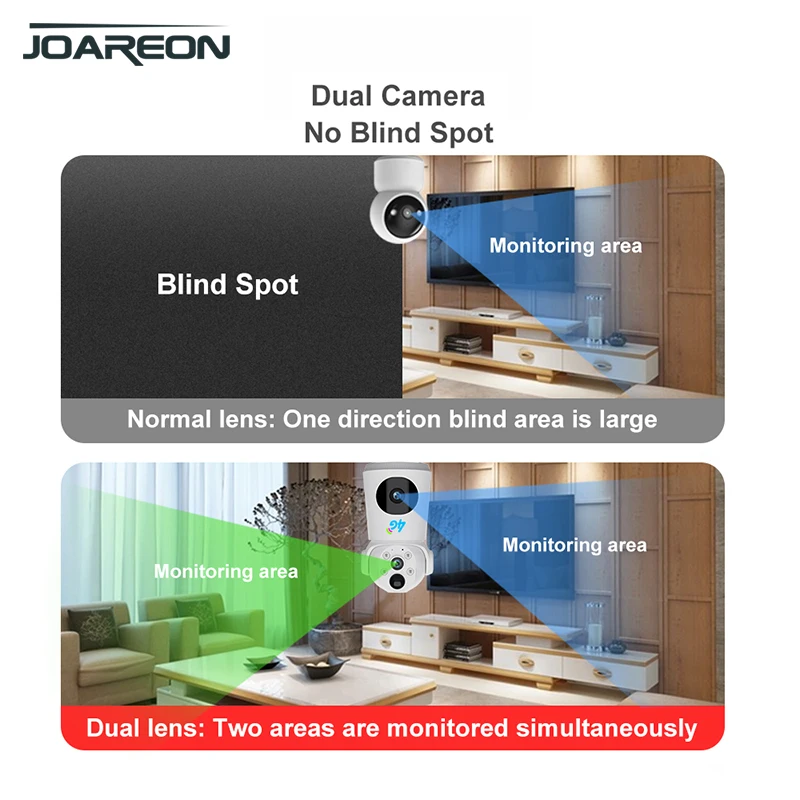

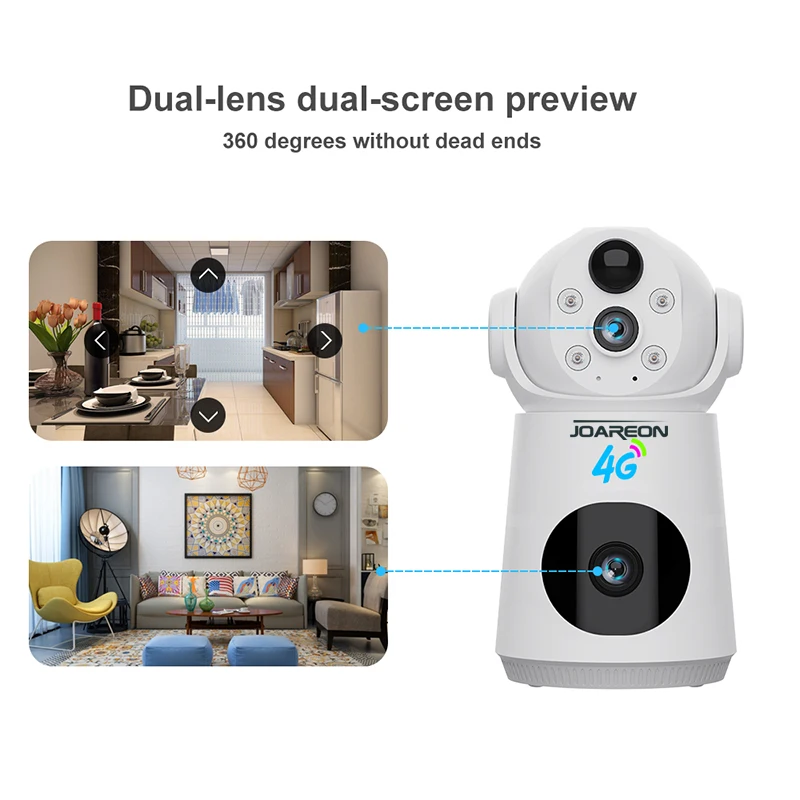

- Lens : DUAL LENS, 4MM F2.0*2
- Video Compression Format : H.265
- Warranty : 1 Year
- Product name : Security Lower Power Battery Camera
- Application : Indoor, Indoor
- Image Resolution : 4MP2+2MP
- App : V380 pro
- Network : 4G Network/LTE-FDD:B1/3/5/8 LTE-TDD:B34/38/39/40/41/TCP/IP,DDNS,DHCP
- Feature : Two-way Voice

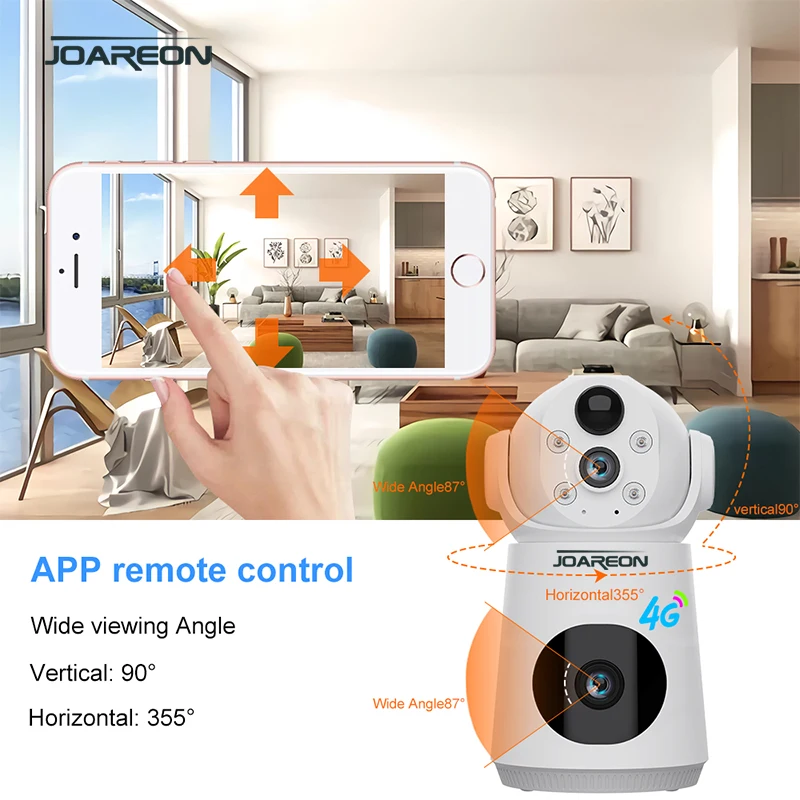

- Pan-tilt : Horizontal:355° Vertical:90°
- Detection angle : 2*80°
Product Description

Selling Points










Specification
|
Model number
|
VQS003-G-1
|
|
|
Produck name
|
Low power 4G Battery camera
|
|
|
Material
|
Plastic
|
|
|
Chipset
|
ANKA KM01N
|
|
|
Sensor
|
1/2.8″ Progressive Scan CMOS(GC3003*2)
|
|
|
Resolution
|
4MP1920*2160P
|
|
|
Camera lens
|
4MM F2.0*2
|
|
|
Video compression standard:
|
H.265_AVI /15FPS
|
|
|

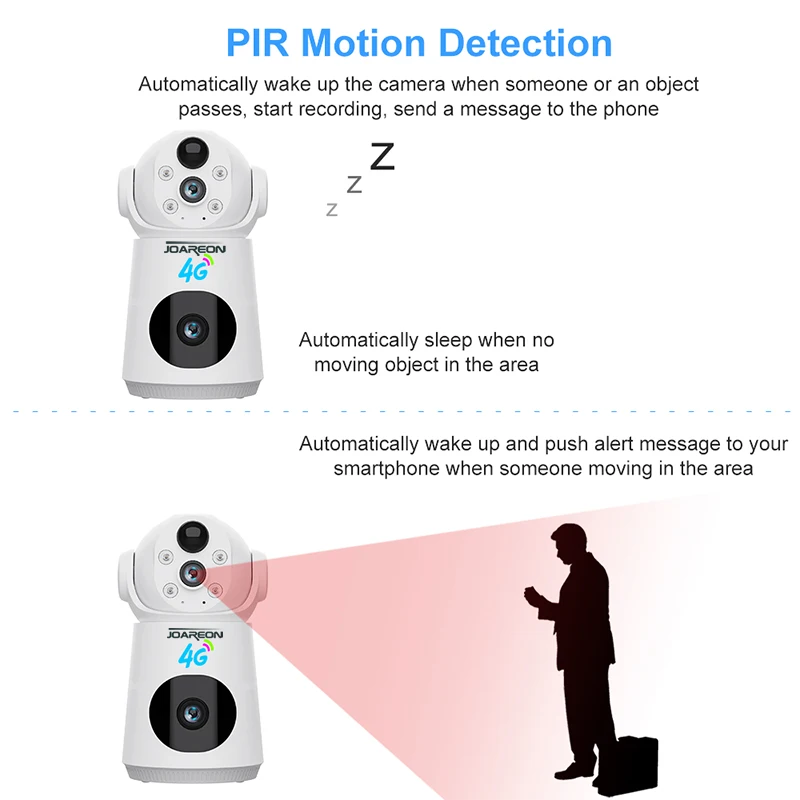

Motion detection
|
PIR + motion detection + humanoid detection multiple intelligent detection, Effective distance 10-15 meters
|
|
|
LED lights
|
4pcs white and 4pcs Infrared double core led
|
|
|

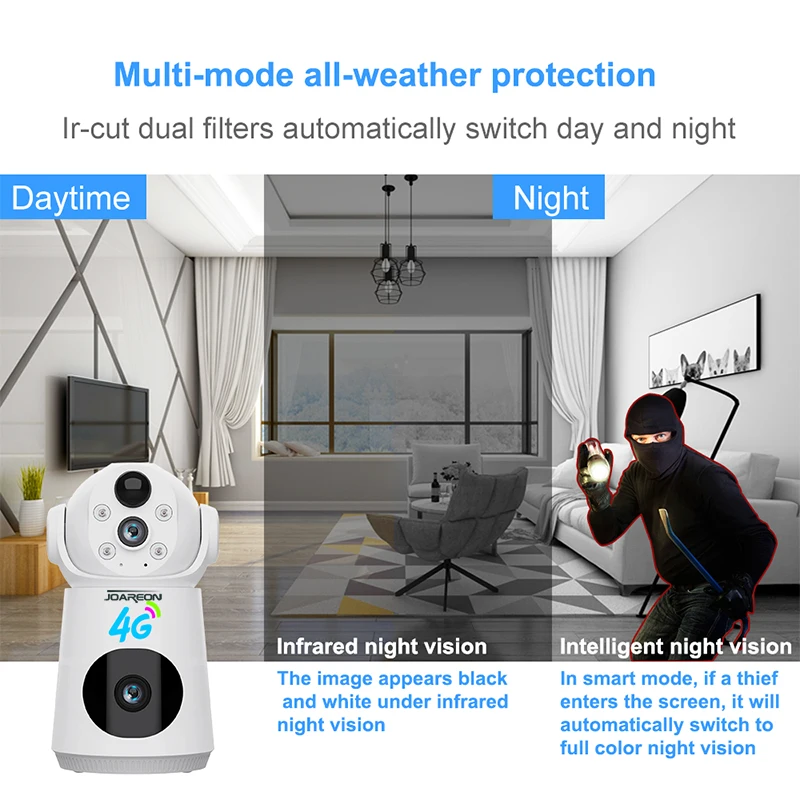

Night vision distance
|
IR-CUT switch Automatic,about 10-15meters It varies from environment
White Led can be remote control via APP:①Turn ON ②Turn OFF ③ Auto In automatic mode, the infrared light will be turned ON after the IR-cut switch to night vision auto , it can intelligently detected human body, and Turn ON/OFF the White light intelligently |
|
|
Battery
|
18650-4000mAh rechargeable lithium battery, rechargeable battery Pack Charge power from 0~100% about 5 hours,PIR mode will be used
about 10 days |
|
|
Power Supply
|
DC 5V/2A(max)
|
|
|
Wake up/sleep time
|
15S/30S/60S/no sleep
|
|
|
Distribution network
|
QR code scanning + Hotspot
|
|
|
WiFi hotspot
|
Support hot spot mode switching
|
|
|
Minimum illumination:
|
0.01Lux@(F2.0,VGC ON,O.Luxwith IR
|
|
|

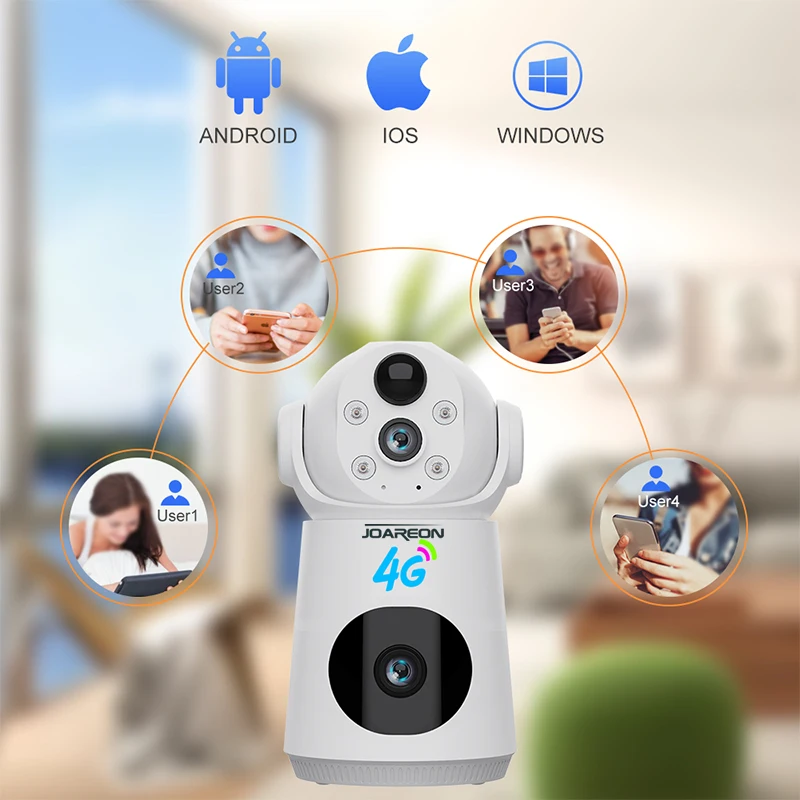

System
|
IOS and Android
|
|
|
Audio
|
Audio code
|

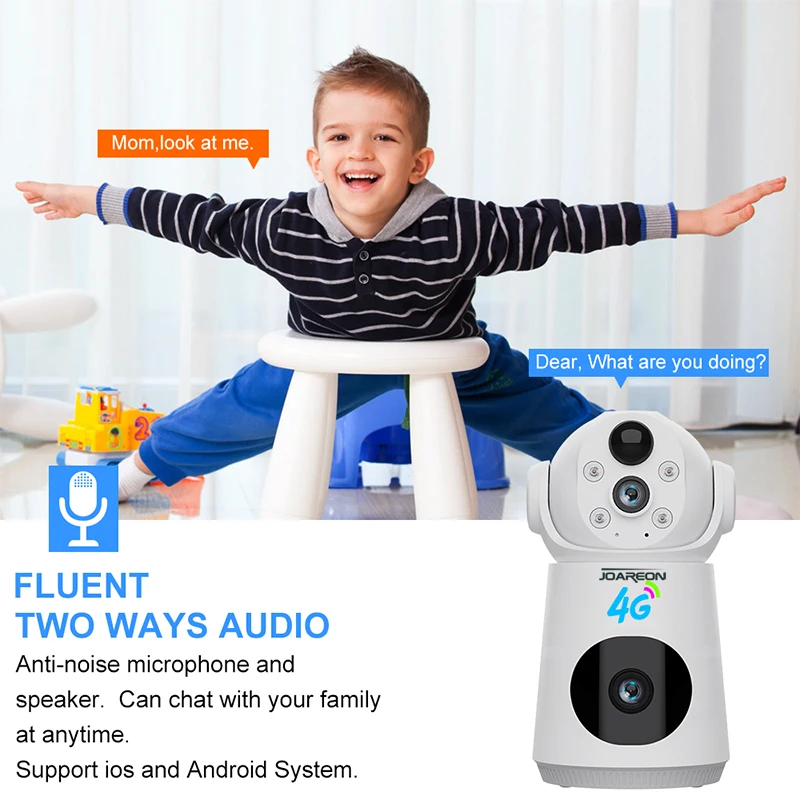

Built-in microphone and speaker, support two-way audio and real-time transmission.
ADPCM audio compression standard, self-adapt to code stream |
|
MIC&Speaker
|
High sensitivity Built-in full noicse reduction micrphone and speacker
|
|
|
4G Network
|
4G Frequency
|
LTE-FDD:B1/3/5/8
LTE-TDD:B34/38/39/40/41 |
|
Protocol
|
TCP/IP,DDNS,DHCP
|
|
|

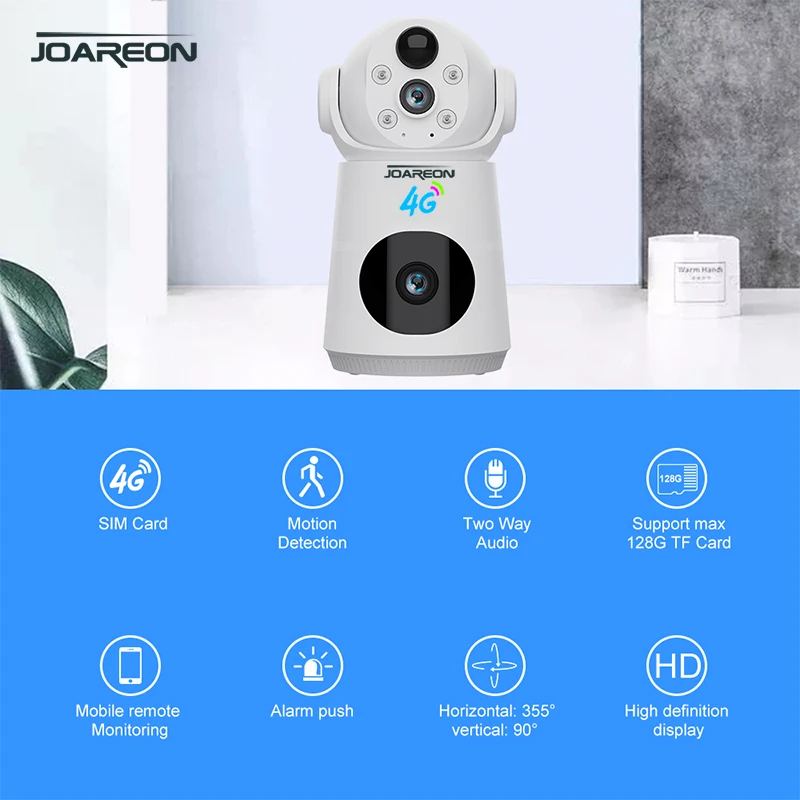

Features
|
Voice Alarm
|
support ,Picture push
|
|
Two way Audio
|
Support
|
|
|
Button
|
Power and Reset button
|
|
|
Status indicator light
|
LED Yellow & red
|
|
|

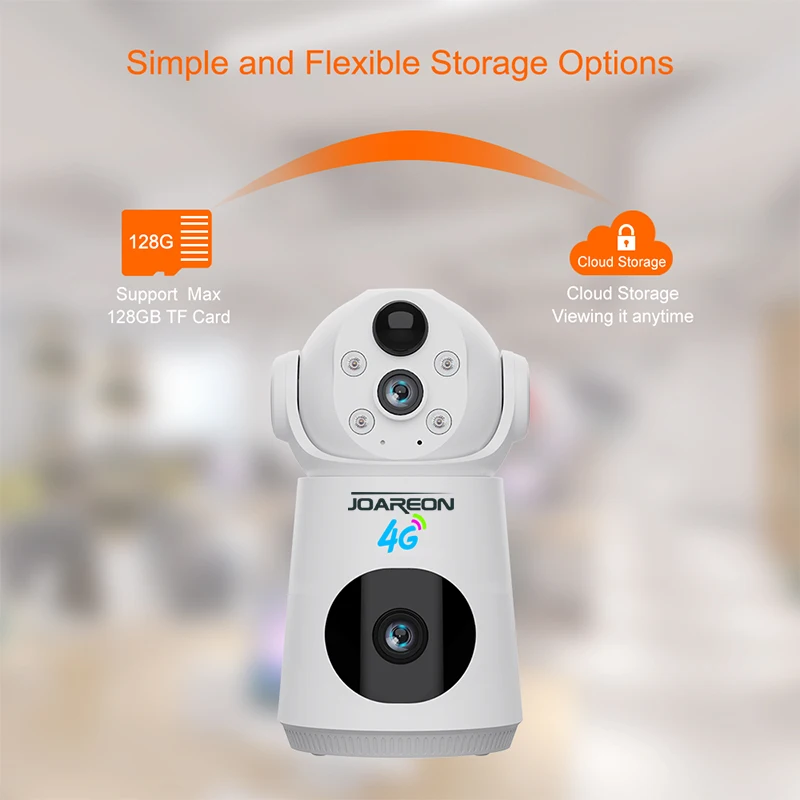

Memorizer
|
Support TF Card 32GB-128GB and cloud storage
|
|
|
Playback
|
Event list and cloud storage playback
|
|
|
USe Scenarios
|
Indoor
|
|
|
Full duplex intercom
|
support
|
|
|
APP
|
V380 PRO
|
|
|
Environment
|
Temperature
|
-0℃ ~+50℃
|
|
Humidity
|
≤75%RH
|
|
|
Package
|
Ctn size
|
52*46.2*22CM,30pcs/ctn
|
|
Color box Size
|
89*84*192MM
|
Package Contents & Camera Size
1* Indoor Camera
1* Packing Box
1* Power Cable
1* Power Adapter
1* Instruction Manual
1* Screw Fittings
1* Indoor Camera
1* Packing Box
1* Power Cable
1* Power Adapter
1* Instruction Manual
1* Screw Fittings
Warm tips: Micro SD card is optional
