- Data Storage Options : Cloud, Micro SD card, SD Card
- Function : Two-Way Audio, Pan-Tilt, Alarm I/O, Reset, Built-In Mic, Night Vision, Waterproof / Weatherproof, Wide Angle, Built-In Siren, Full Color
- Sensor : CMOS
- Special Features : Human Motion Tracking, Night Vision, Motion Detection, Waterproof / Weatherproof, Built-In Siren, Pan-Tilt, Two-Way Audio
- Style : PTZ Camera

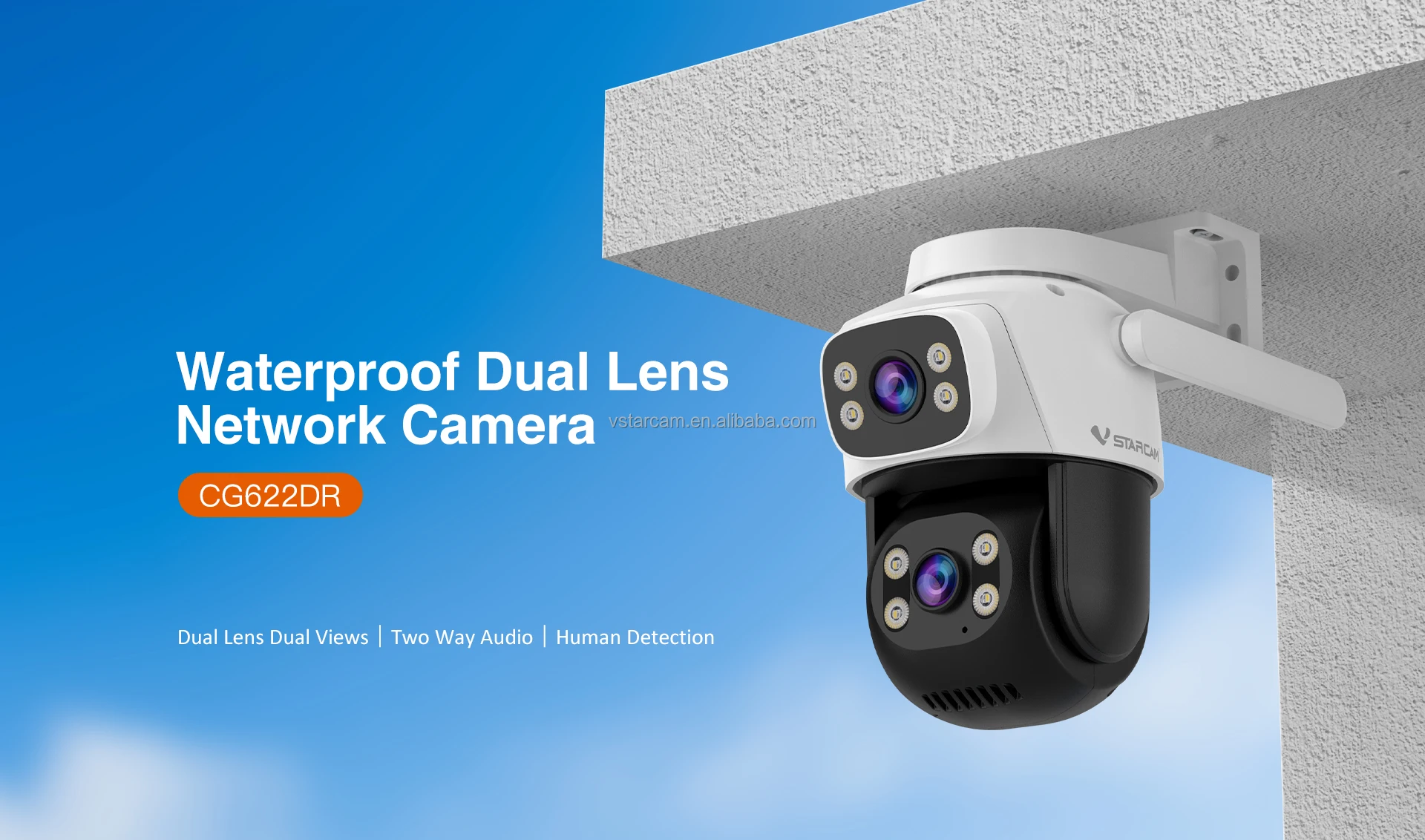

- Model Number : CG622DR
- Brand Name : Vstarcam
- Customized support : Online Technical Support, Customized Logo, OEM, ODM

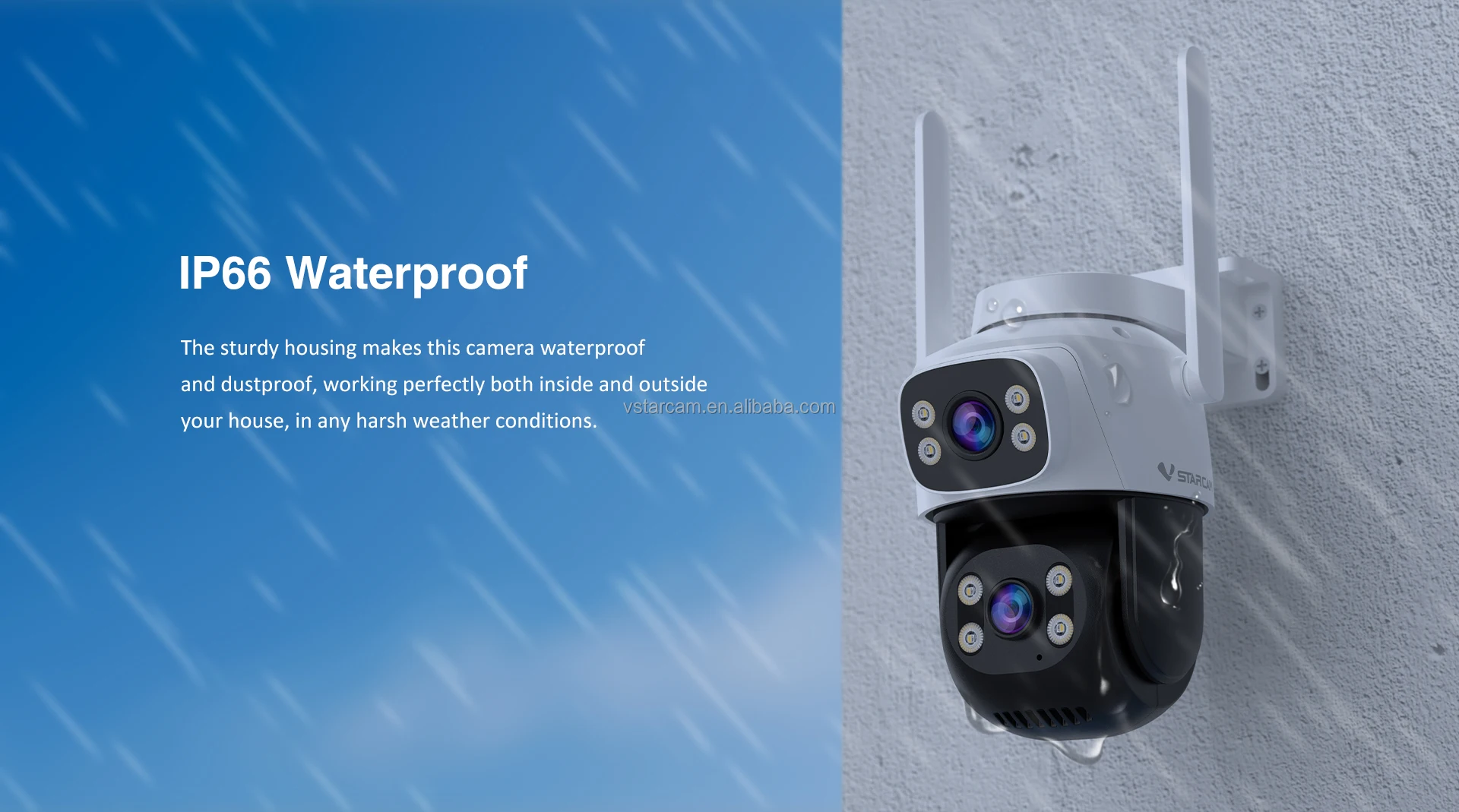

- IP Rating : IP66
- Lens : 2.8-12 mm, 4mm
- Material : ABS
- Pixels : 6 MP
- Video Compression Format : H.264
- Viewing Angle : 360
- Warranty : 1 Year
- Type : Parameters
- Operating system : Linux
- Online visitor : Supports 4 visitors at the same time
- APP : O-KAM Pro
- CPU : Ingenic
- Memory : 512Mb
- Weight : Net weight: 409g, gross weight: 570g
- Camera size : 146x116x170mm
- Network : Asian 4G
Product specification
|

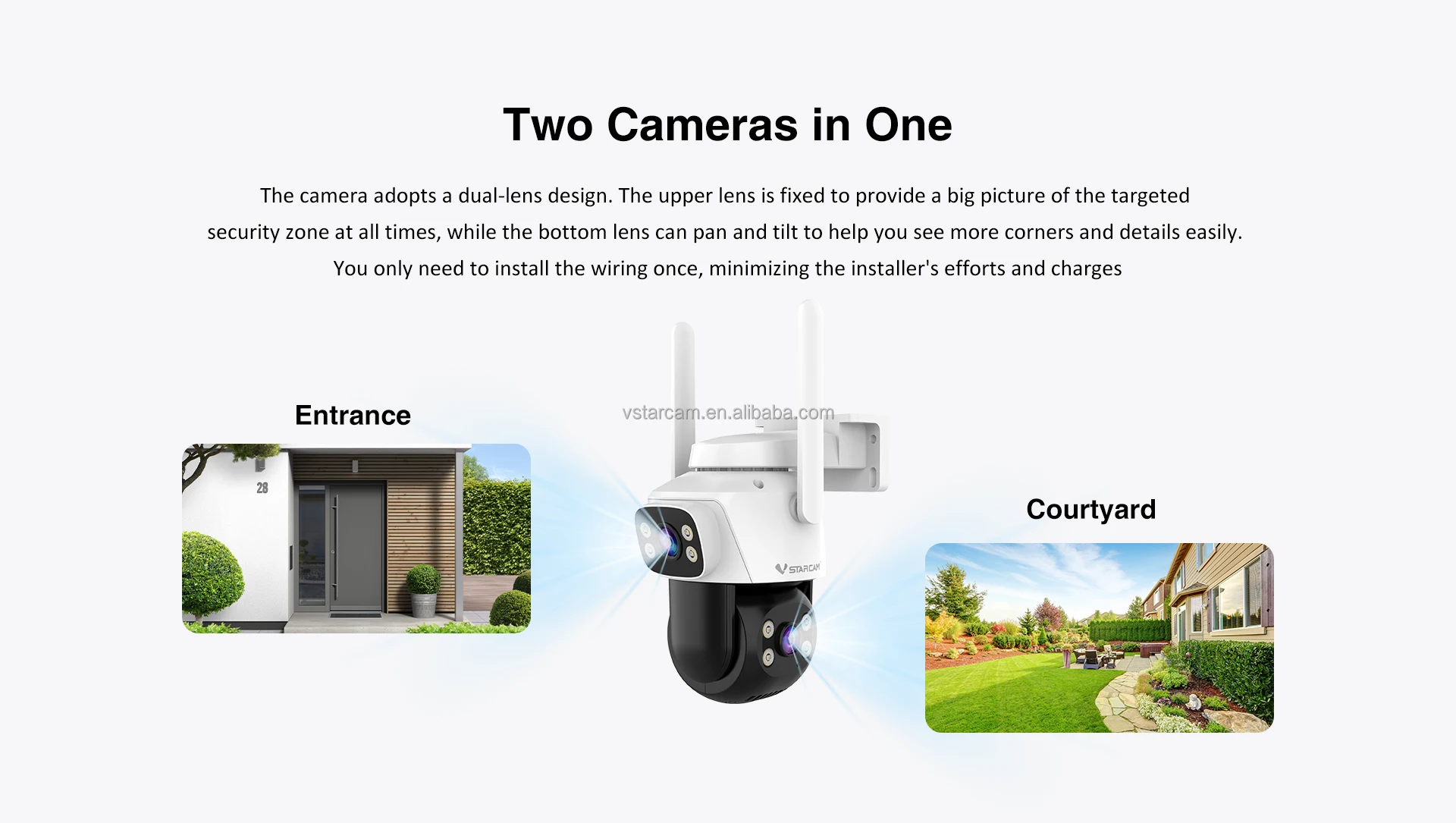

✮Two cameras in one, dual views with no blind spots
|
||
|
✮4G network
|
||
|
✮Dual-core light panel, color night vision
|
||
|
✮ISP image processing technology, preserving true colors
|
||
|
✮Human detection, real time alerts
|
||
|
Sorts
|
Type
|

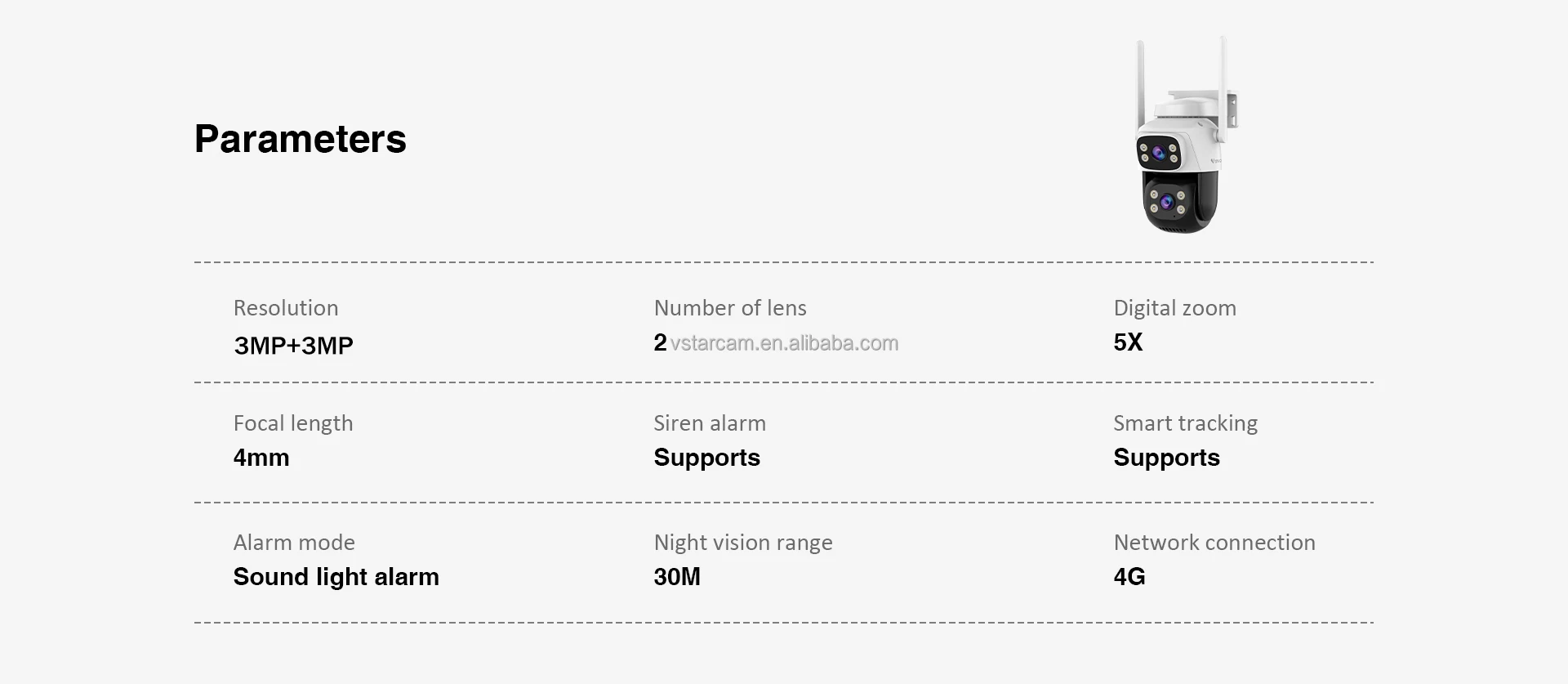

Parameters
|
|
System
|
Operating system
|
Linux
|
|
Online visitor
|
Supports 4 visitors at the same time
|
|
|
APP
|
O-KAM Pro
|
|
|
Collection
|
CPU
|
Ingenic
|
|
Memory
|
512Mb
|
|
|
Lens
|
4mm
|
|
|
Image sensor
|
1/2.7″ 1080p progressive scan CMOS sensor
|
|
|
Min. Illumination
|
0.5Lux color mode, 0.1Lux b&w mode
|
|
|
Sensor performance
|
Support automatic white balance, automatic gain control and automatic backlight compensation
|
|
|
Night vision
|
Black and white night vision, full-color night vision
|
|
|
Viewing angle
|
91°
|
|
|
Video
|
Resolution
|
1080P 1920×1080/15FPS/2MP;1296P 2304×1296/15FPS/3MPInterpolation
|
|
Night vision
|
Black and white night vision, full-color night vision
|
|
|
Compression standard
|
H.264 main profile/Motion-JPEG/JPEG
|
|
|
IR control
|
IR-CUT, soft photosensitive control
|
|
|
Bit rate
|
128~4096kbps
|
|
|
Image adjustment
|
Brightness, contrast, OSD display
|
|
|
Audio
|
Input
|
Built-in -38dB microphone
|
|
Output
|
Built-in 8Ω1W speaker
|
|
|
Sampling frequency/bit width
|
8KHz/16bit
|
|
|
Compression standard/Bit Rate
|
G711A
|
|
|
Pan/Tilt
|
Rotation angle
|
Pan:270° Tilt:90°
|
|
Network
|
Network interface
|
10Mbps/100Mbps
|
|
Network protocol
|
TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P
|
|
|
4G networkChina
|
FDD:B1/B3/B8 TDD:B34/B38/B40
|
|
|

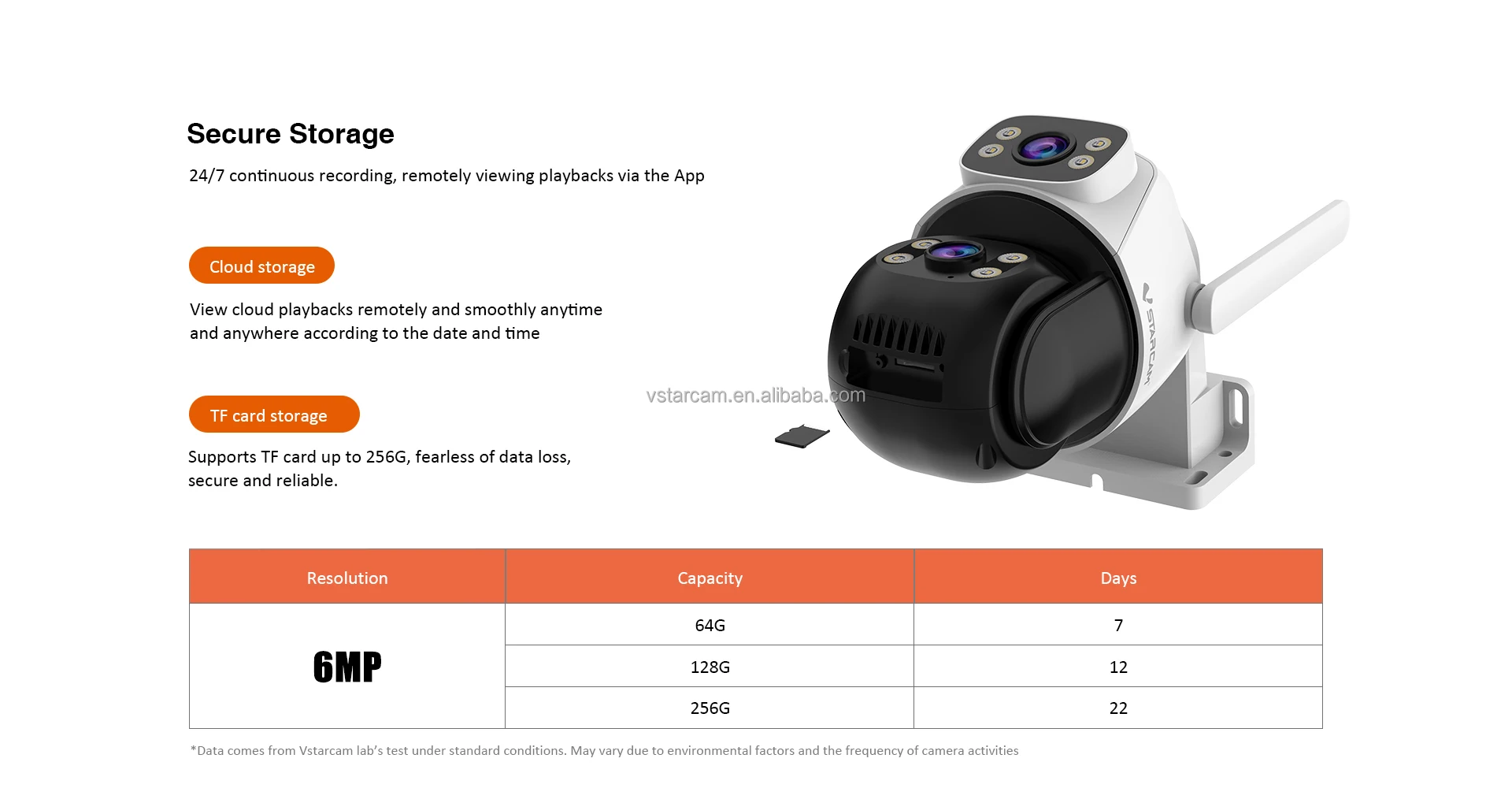

Storage
|
External TF card
|
Supports T-Flash cards up to 256GB
|
|
Cloud storage
|
Support cloud storage, users can purchase according to their needs.
|
|
|
Alarm
|
Alarm detection
|
Motion detection, human detection, human framing, human tracking, siren alarm, and area detection
|
|
Physical Indicators
|
Rated voltage
|
DC12V±5%
|
|
Power consumption
|
Power: 6.96W 0.58A Maximum power: 10.56W 0.88A
|
|
|
Operating condition
|
Working temperature: -10~55 ℃, working humidity<90%
|
|
|
Weight
|
Net weight: 409g Gross weight: 570g
|
|
|

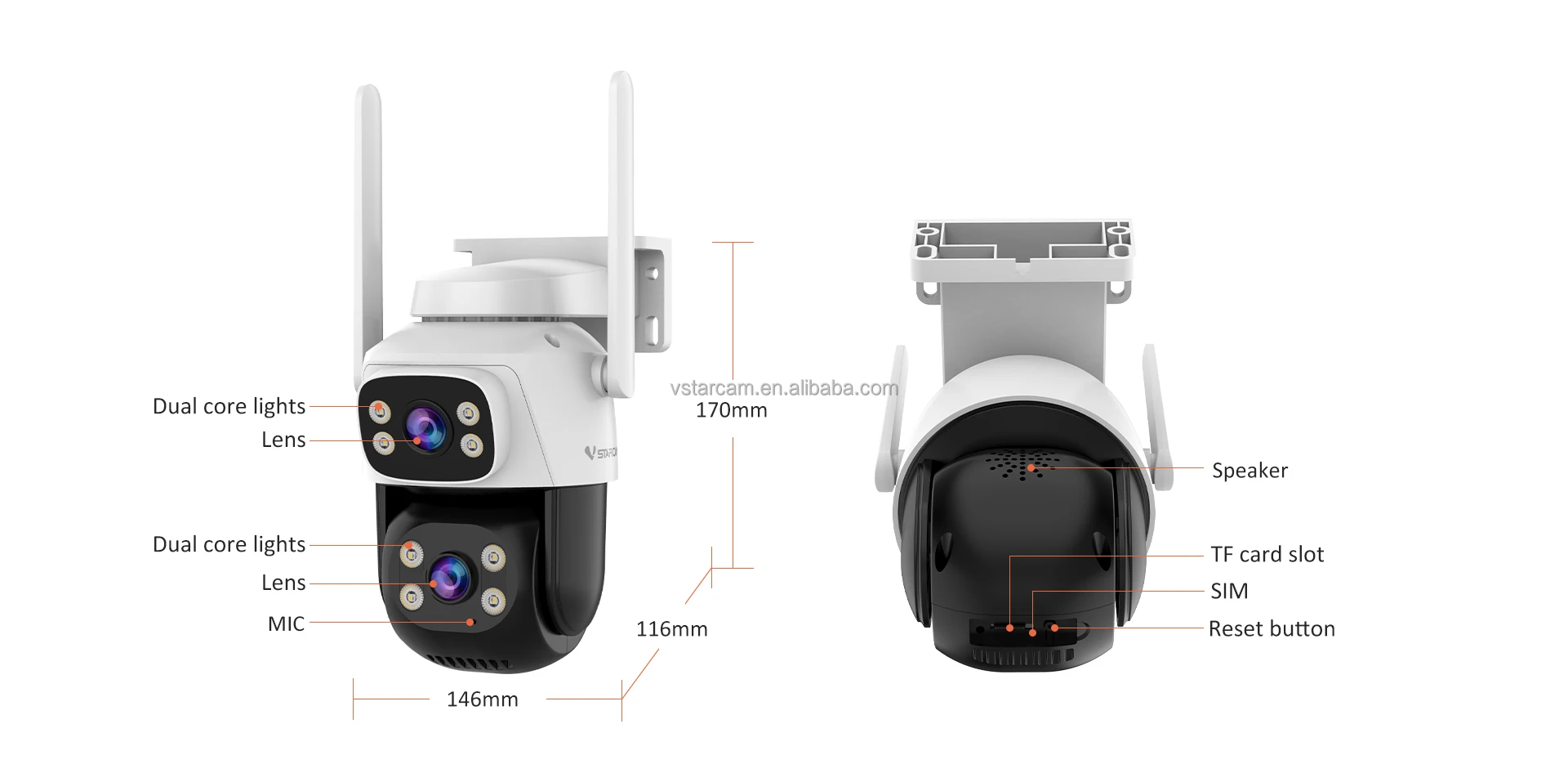

Camera size
|
146x116x170mm
|
|
|
Packaging box size
|
205x160x140mm
|
|
|
Carton size
|
580x425x345mm,16PCS/Carton
|
